PSKLM Terminal / Junction Boxes
    The PSKLM Series is a range (19 models) of mild steel terminal / junction / project boxes which are IP66 rated and powder coated, read on....

PSKLM Terminal Boxes @ A Glance
    Please see below for an overview of sizes and accessories, features, accessories & resources available.
PSKLM Series IP Mid Steel Electrical Terminal Junction Box

PSKLM Series - IP66 Mild Steel Terminal / Junction Boxes
19 Models, Texture powder coated RAL 7035
150 x 150 x 95 ~ 600 x 400 x 135
Supply includes: Terminal Box Only
Available accessories include: Wall mounting Brackets, Mounting plates
Please see item details for more information


PSKLM Dimensions @ A Glance
    Please see below for an overview of sizes and accessories, features, accessories & resources available.

Model # Width Height Depth IP Material Description

PSKLM151580 150 150 80 66 MS Term. Box, RAL 7035
PSKLM151512 150 150 120 66 MS Term. Box, RAL 7035
PSKLM201580 200 150 80 66 MS Term. Box, RAL 7035
PSKLM201512 200 150 120 66 MS Term. Box, RAL 7035
PSKLM202080 200 200 80 66 MS Term. Box, RAL 7035
PSKLM202012 200 200 120 66 MS Term. Box, RAL 7035
PSKLM301580 300 150 80 66 MS Term. Box, RAL 7035
PSKLM301512 300 150 120 66 MS Term. Box, RAL 7035
PSKLM302080 300 200 80 66 MS Term. Box, RAL 7035
PSKLM302012 300 200 120 66 MS Term. Box, RAL 7035
PSKLM303012 300 300 120 66 MS Term. Box, RAL 7035
PSKLM401512 400 150 120 66 MS Term. Box, RAL 7035
PSKLM402080 400 200 80 66 MS Term. Box, RAL 7035
PSKLM402012 400 200 120 66 MS Term. Box, RAL 7035
PSKLM403012 400 300 120 66 MS Term. Box, RAL 7035
PSKLM404012 400 400 120 66 MS Term. Box, RAL 7035
PSKLM502012 500 200 120 66 MS Term. Box, RAL 7035
PSKLM503012 500 300 120 66 MS Term. Box, RAL 7035
PSKLM602080 600 200 80 66 MS Term. Box, RAL 7035
PSKLM602012 600 200 120 66 MS Term. Box, RAL 7035
PSKLM603012 600 300 120 66 MS Term. Box, RAL 7035
PSKLM604012 600 400 120 66 MS Term. Box, RAL 7035
PSKLM802012 800 200 120 66 MS Term. Box, RAL 7035
PSKLM804012 800 400 120 66 MS Term. Box, RAL 7035



PSKLM Orientation @ A Glance
    CAD Drawings / Images will be added to each Terminal Box Model No. when time allows, please do not hessitate to ask (as they need to be / will be done regardless)/

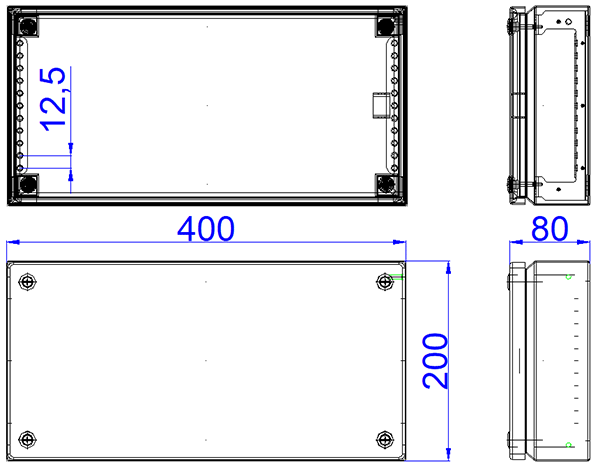

    PSKLM402080 CAD DWG Dimensions
PSKLM402080 (400W x 200H x 80D) shown as a reference only


How can we help you?

    Your visit has been appreciated and we look forward to your comments / enquiries.

    Please leave us a message below or call us on 0448 085 061 to discuss your application.


* Required

* Required

* Required

* (10 numbers)








Error: please enable JavaScript and reload this page before using the form..





Home

About

Contact US

Feedback

+++++++++++

Terminal Boxes

+ U R Here +

PSKLM Series

PLASTIC

PSPK Series

GEAP Series

ALUMINIUM

PSGA Series

MILD STEEL

ELA Series

PSEB Series

STAINLESS

CSTB Series

PSKLS Series

CSTSL Series

+++++++++++



Peekn Services





























































The PSKLM151580 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 150W 150H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1514510
The PSKLM151512 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 150W 150H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1500510
The PSKLM201580 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 200W 150H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1528510
The PSKLM201512 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 200W 150H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1529510
The PSKLM202080 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 200W 200H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1516510
The PSKLM202012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 200W 200H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1502510
The PSKLM301580 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 300W 150H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1515510
The PSKLM301512 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 300W 150H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1501510
The PSKLM302080 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 300W 200H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1517510
The PSKLM302012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 300W 200H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1503510
The PSKLM303012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 300W 300H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1507510
The PSKLM401512 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 400W 150H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1589510
The PSKLM402080 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 400W 200H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1518510
The PSKLM402012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 400W 200H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1504510
The PSKLM403012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 400W 300H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1508510
The PSKLM404012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 400W 400H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1511510
The PSKLM502012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 500W 200H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1505510
The PSKLM503012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 500W 300H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1509510
The PSKLM602080 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 600W 200H 80D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1506510
The PSKLM602012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 600W 200H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1534510
The PSKLM603012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 600W 300H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1510510
The PSKLM604012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 600W 400H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1538510
The PSKLM802012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 800W 200H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1527510
The PSKLM804012 is a IP66 Mild Steel Terminal / Project / Junction box with dimensions of 800W 400H 120D (mm) and is typically used to house electrical / electronic control devices,terminal blocks, switchgear etc.. It is similar in size and applications to KL 1513510
