PSEB Hinged Terminal Box Intro |
|||||||||
| The PSEB Series is a range of cost effective Low Profile hinged electrical terminal boxes, which can also be used as electrical control panels / enclosures where space allows. | |||||||||
| @ A Glance, they are powder coated and afford a high level of both environmental and mechanical protection for your project. | |||||||||
| Your project result is important to us and to this end, the PSEB series is complimented by a wide range of accessories to assist you in meeting your project requirements. | |||||||||
|
|
|||||||||
| Project Planning: | |||||||||
| To assist you in your project planning, we are in the process of implementing a range of "enclosure specific" pages & data sheets | |||||||||
| Resources @ A Glance include dimensional / mechanical drawings for every enclosure in the series and they can be requested in a variety of formats from PDF (A4 or A3) through to CAD Dwg, DXF, 3D Studio MAX, Archicad, Ascon (C3D), Allplan 2008, CADmep, Revit 2014, Areva PDMS, BMP, BeckerCAD, DWF, Solid Edge, VisiCad, + more.... |
 |
||||||||

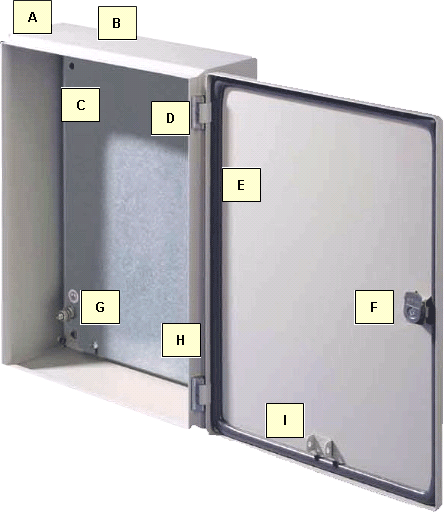

PSEB Features @ A Glance |
|||
 |
|||
 |
1.5mm Body and Door fully welded with folded front profile. |
 |
Fully foamed in PU Gasket that provides IP66 Protection. |
 |
Wall mounting holes provision for in the rear body section |
 |
Cast 3mm double bit lock insert and locking cam. |
 |
2mm Internal mounting plate / gear tray. |
 |
Mounting plate earth bolt & sticker supplied in acc's. pack |
 |
1800 Hinges |
 |
M6 earthing stud welded to body side section. |
| PSEB Specifications @ A Glance |
|
The supply of this enclosure as standard includes, enclosure with hinged door,
1800 degree hinges, a cam lock ((s) 500mm & above) with 3mm double bit inserts,
an internal mounting plate and an accessory pack. The enclosure body and door are manufactured from sheet steel, the surface finish for the enclosure and door is dip-coat primed and texture powder coated RAL 7035 on the exterior surfaces, the mounting plate is zinc plated. The PSEB body, door and components combine to provide a mechanical protection rating of IK08 and environmental ratings of NEMA 4 & IP66 (to IEC 60 529). Approval for this standard range of enclosures include UL, cUL, CSA, TÜV, Russian Maritime Register of Shipping, Lloyds Register of Shipping & Bureau Veritas. |
| PSEB Dimensions @ A Glance |
 |
|||||||||
| WIDTH = 150+ mm x Height x Depth | |||||||||
| Sort Order W x H x D | |||||||||
| Model # | Dimensions (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| PSEB151508 | 150 | 150 | 80 | 1 | 1 | 1.7 | IP66 | RAL 7035 Grey |
|
| PSEB151512 | 150 | 150 | 120 | 1 | 1 | 2.0 | IP66 | RAL 7035 Grey | |
| PSEB153008 | 150 | 300 | 80 | 1 | 1 | 2.6 | IP66 | RAL 7035 Grey | |
| PSEB153012 | 150 | 300 | 120 | 1 | 1 | 3.0 | IP66 | RAL 7035 Grey | |
| PSEB202008 | 200 | 200 | 80 | 1 | 1 | 2.4 | IP66 | RAL 7035 Grey | |
| PSEB202012 | 200 | 200 | 120 | 1 | 1 | 2.8 | IP66 | RAL 7035 Grey | |
| PSEB203008 | 200 | 300 | 80 | 1 | 1 | 3.2 | IP66 | RAL 7035 Grey | |
| PSEB203012 | 200 | 300 | 120 | 1 | 1 | 3.6 | IP66 | RAL 7035 Grey | |
| PSEB204008 | 200 | 400 | 80 | 1 | 1 | 4.4 | IP66 | RAL 7035 Grey | |
| PSEB204012 | 200 | 400 | 120 | 1 | 1 | 5.0 | IP66 | RAL 7035 Grey | |
| PSEB205012 | 200 | 500 | 120 | 1 | 1 | 6.2 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 300mm x Height x Depth | |||||||||
| Sort Order W x H x D | |||||||||
| Model # | Dimensions (mm) | Doors | Locks | Weight | IP | Colour |
|
||
| Width | Height | Depth | (Kg) | Rating | |||||
| PSEB303012 | 300 | 300 | 120 | 1 | 1 | 5.0 | IP66 | RAL 7035 Grey | |
| PSEB304015 | 300 | 400 | 155 | 1 | 2 | 7.1 | IP66 | RAL 7035 Grey | |
| PSEB306015 | 300 | 600 | 155 | 1 | 2 | 11.0 | IP66 | RAL 7035 Grey | |
| PSEB308015 | 300 | 800 | 155 | 1 | 2 | 13.2 | IP66 | RAL 7035 Grey | |
| PSEB Accessories @ A Glance | |||
| The PSEB Series of low profile enclosures / hinged lid terminal boxes are supported by a wide range of accessories, including the following: | |||
| Wall Mounting brackets | Cable glands - polyamid | ||
| DIN Rail | Plastic handle - keyed | ||
| Pole clamp | Keyed lock cylinders | ||
| Earth straps | T-Handle - no lock | ||
| Din rail mounting clips | Plastic handle - no lock | ||
| Cable glands - brass | T-Handle - Keyed | ||
| How can we help you? |
| Your visit has been appreciated and we look forward to your comments / enquiries. |
| Please leave us a message below or call us 0448 085 061 to discuss your application. |
 |
| Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233 |
| Mobile Service: 0448 085 061, About Us :: Contact Us |
