ELA Terminal / Junction / Project Box Introduction
     The ELA Mild steel enclosure range are an IP65, RAL 7035 powder coated mild steel base with screw fixed lid.

    The base is fully formed and includes perforated strips for the fixing of a mounting plate or DIN rails, 4 off 9mm mounting holes are included.

    There are currently 17 models available in depths of 95 or 135mm (see below for model #'s / sizes.

    This page is work in progress, products & accessories are generally available, CAD drawings available on request (see sample below).  more information will be added as time allows.


ELA Series Mild Steel Terminal Boxes

ELA Series - IP65 Mild Steel Terminal / Junction Boxes
19 Models, RAL 7035
150 x 150 x 95 ~ 600 x 400 x 135
Supply includes: Terminal Box Only
Available accessories include: Wall mounting Brackets, 2mm Gal mounting plates


ELA Overview @ A Glance

Description: ELAxxxxxx, ___W x ___H x ___D mm, IP65 Mild Steel Electrical terminal / project / junction box.

Width (mm): 150 ~ 400
Height (mm): 150 ~ 600
Depth (mm): 195 ~ 135
Colour: RAL 7035 Grey
Weight (kg): 1.3 ~ 5.8
Resistance to
impact: Mechanical; IK10
Degree of
protection: Environmental; IP55 - NEMA 4, 12

Finish:  Ripple, hardened polyester powder coat, 80 ~ 120 μ, ripple pattern, UV tolerant, RAL 7035 grey.
Material:  Enclosure > Cold - rolled steel (EN 10130+A1), 1.2mm
Protection: Environmental; IP65 - NEMA 1, 12
* Corrosion resistance according to the UNE-EN 62208 standard.
Approvals
/Certs*:
  * According to low tension directive 2014/35/EU.
  Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).

  Certificate UL508A.

ELA DIMENSIONS @ A GLANCE

ELA Terminal Box Dimensioned CAD Drawing
For reference only, sample image = ELA5030135
CAD Dimensioned Image / PDF / DWG or DXF Files for each size / model are available on request.


Model # Width Height Depth IP Material Description

ELA151595 150 150 95 65 MS Term. Box, RAL 7035
ELA201595 150 200 95 65 MS Term. Box, RAL 7035
ELA202095 200 200 95 65 MS Term. Box, RAL 7035
ELA301595 150 300 95 65 MS Term. Box, RAL 7035
ELA302095 200 300 95 65 MS Term. Box, RAL 7035
ELA402095 200 400 95 65 MS Term. Box, RAL 7035
ELA1515135 150 150 135 65 MS Term. Box, RAL 7035
ELA2015135 150 200 135 65 MS Term. Box, RAL 7035
ELA2020135 200 200 135 65 MS Term. Box, RAL 7035
ELA3015135 150 300 135 65 MS Term. Box, RAL 7035
ELA3020135 200 300 135 65 MS Term. Box, RAL 7035
ELA3030135 300 300 135 65 MS Term. Box, RAL 7035
ELA4020135 200 400 135 65 MS Term. Box, RAL 7035
ELA4030135 300 400 135 65 MS Term. Box, RAL 7035
ELA4040135 400 400 135 65 MS Term. Box, RAL 7035
ELA5030135 300 500 135 65 MS Term. Box, RAL 7035
ELA6020135 200 600 135 65 MS Term. Box, RAL 7035



ELA Accessories @ A Glance
  Mounting Plates

ELAMP1515 115W x 130H 2mm Galvanised Steel Mounting plate to suit 150W x 150W ELA Terminal Box - 26300
ELAMP1520 115W x 180H 2mm Galvanised Steel Mounting plate to suit 150W x 200W ELA Terminal Box - 26301
ELAMP2020 165W x 180H 2mm Galvanised Steel Mounting plate to suit 200W x 200W ELA Terminal Box - 26303
ELAMP1530 115W x 280H 2mm Galvanised Steel Mounting plate to suit 150W x 300W ELA Terminal Box - 26304
ELAMP2030 165W x 280H 2mm Galvanised Steel Mounting plate to suit 200W x 300W ELA Terminal Box - 26305
ELAMP3030 265W x 280H 2mm Galvanised Steel Mounting plate to suit 300W x 300W ELA Terminal Box - 26306
ELAMP2040 165W x 380H 2mm Galvanised Steel Mounting plate to suit 200W x 400W ELA Terminal Box - 26309
ELAMP3040 265W x 380H 2mm Galvanised Steel Mounting plate to suit 300W x 400W ELA Terminal Box - 26310
ELAMP4040 365W x 380H 2mm Galvanised Steel Mounting plate to suit 400W x 400W ELA Terminal Box - 26311
ELAMP2050 165W x 480H 2mm Galvanised Steel Mounting plate to suit 200W x 500W ELA Terminal Box - 26313
ELAMP3050 265W x 480H 2mm Galvanised Steel Mounting plate to suit 300W x 500W ELA Terminal Box - 26314
ELAMP2060 165W x 580H 2mm Galvanised Steel Mounting plate to suit 200W x 600W ELA Terminal Box - 26316


Components @ A Glance

    The GN Series of enclosures are complemented by a wide range of components that are available for you to include in your project.
    Please see below a very brief overview of typical electrical components used within our enclosure ranges.
    Please Note: This list is not extensive, please contact us with your enquiries for other items that we may also be able to supply.

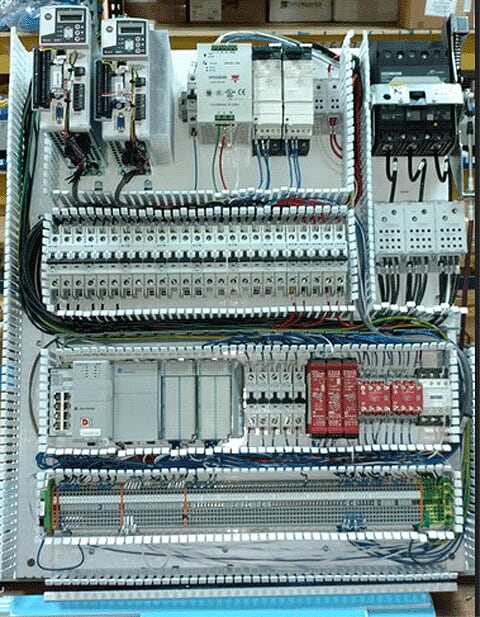

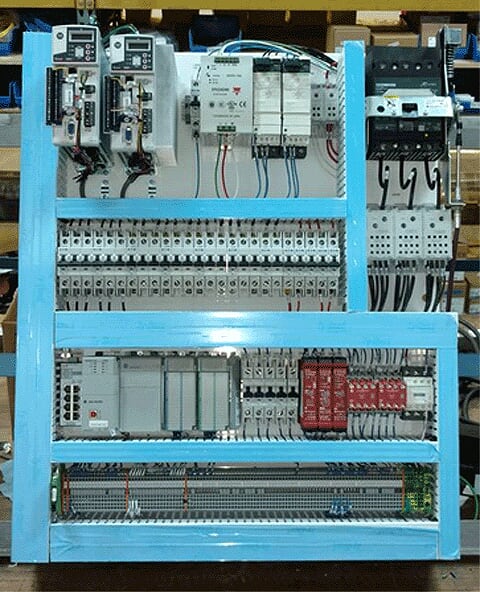

Electrical Components for Enclosures from Peekn Services DIN Rail Electrical Components for Enclosures from Peekn Services
