PSCM Electrical Enclosure Solutions

     The PSCM Series of electrical enclosures / cabinets are general purpose in nature and primarily used for the housing and protection of electrical / electronic control, intrumentation, motor control, HVAC, pneumatic, hydraulic, monitoring & distribution components.

    They are fit for use in Commercial, Domestic, Industrial, Residential & Retail environments (examples).

     Some industry application examples:...Airports, Automation & control, Automotive, Biotechnolgy, Chemical inustry, Control, Electrical installations, Electronic housings, Home automation, Home security, HVAC, Hydraulics, Light rail, Lightening protection, Lighting, Maritime, Measurement, Mineral oil, Mining, Monitoring, Motor controls, Natural gas, Oil refining, Paper, Pharmaceuticals, Plastics industry, Pneumatics, Power generation, Process production, Security, Traffic control, Trains, Transport, VSD, etc.

     This site is still work in progress and as such is lacking at the moment some details which are available (time...) and available upon request, such as CAD Dimensional Drawings or images (available on request) and enclosure specifc accessories.

     Please peruse the sizes and then ask what you will and we will do our utmost to assist you.


PSCM Enclosure Overview
IP55 PSCM Series free standing electrical enclosures

PSCM  Series - IP55 Mild Steel Enclosures (Single / Double Door)
14Models,Texture powder coated RAL 70355
600W600W x 800W x 300D ~ 1200W x 1400H x 400D
Supply includes: Enclosure, Mounting Plate, 3 point locking system, NO gland plates.
Please Note: Gland plates need to be ordered additionally to achieve the IP55 rating. see specific item details for available configurations.
Available accessories include: Locking options, Gland plates, cable entry plates, Cable management rails, Rails for interior installation, Rain canopies, Plinths, Wiring plan pockets, Folding lever handle, etc....
  PSCM Sizes PDF (95kb)







PSCM Enclosure Sizes & Model #'s

Model # Width Height Depth IP Description

PSCM608040 600 800 400 55* Encl, RAL 7035
PSCM601040 600 1000 400 55* Encl, RAL 7035

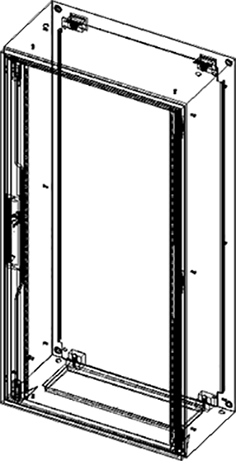

PSCM601230 600 1200 300 55* Encl, RAL 7035
PSCM601240 600 1200 400 55* Encl, RAL 7035
PSCM801030 800 1000 300 55* Encl, RAL 7035
PSCM801040 800 1000 400 55* Encl, RAL 7035
PSCM801230 800 1200 300 55* Encl, RAL 7035
PSCM801240 800 1200 400 55* Encl, RAL 7035
PSCM101030 1000 1000 300 55* Encl, 2 Doors, RAL 7035
PSCM101230 1000 1200 300 55* Encl, 2 Doors, RAL 7035

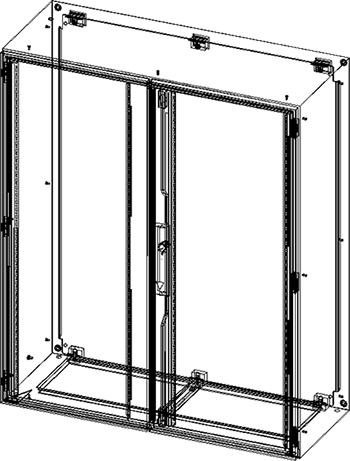

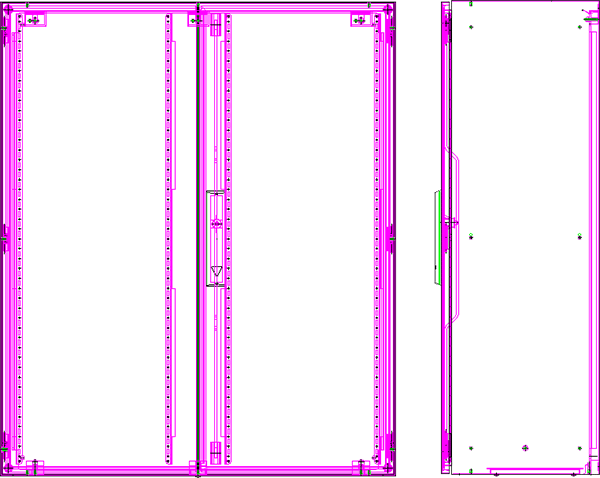

PSCM101240 1000 1200 400 55* Encl, 2 Doors, RAL 7035
PSCM101430 1000 1400 300 55* Encl, 2 Doors, RAL 7035
PSCM101440 1000 1400 400 55* Encl, 2 Doors, RAL 7035
PSCM121240 1200 1200 400 55* Encl, 2 Doors, RAL 7035

IP55* Gland / cover plates are required for the base to meet this rating.


PSCM Enclosure Accessories

    Accessories maketh the project!  Please see below a list of accessories that may be used with this range of enclosures (subject to enclosure size).

    Just to name a few...
1800 hinges, 19” Swing frames, Air Conditioners, Anti-condensation valves, Baying kit, C Rails, Cable conduit holders, Cable conduit, Cam locks, Castors, Condensate evaporators,DIN Rails, Door cross rails, Door operated switch, Door stay, Dust guard for door, Earth rails, Earth straps, EMC solutions, Enclosure anti-condensation heaters, Enclosure hygrostat, Enclosure lights, Enclosure thermostat, Eye bolts, Fan & Filter units, Fan speed controller, Fan units, Gland plates – plastic, Glands – Brass, Glands – Plastic, Glazed door, Heat exchangers, Heaters, hinged escutcheon, Hose proof hoods, Hygrostat, Identification strips, Inner door, Internal fans, Internal system rails, LED system lights, Lock – keyed cylinder, Lock – plastic lever key lockable, Lock – plastic lever non-locking, Lock – T Handle – Lockable, Lock – T handle – Non locking Lock insert – 7mm square, Lock insert – 7mm triangular, Lock insert – 8mm square, Lock insert – 8mm triangular, Lock insert cover, Louvre plates, Modular plinth, Mounting bars, Neutral links, Padlock kit, Plinth / base, Pole mounting kit, Pressure relief stoppers, Punched mounting rails, Punched section rails, Punched section rails, Rain canopy, Shelf, Signal pillars, Support strips, Swing handle – keyed + push button, Swing handle – keyed, Swing handle – pad-lockable, Swing handle – push button, System lights, Thermostat, Viewing windows, Wall angle, Wall Mounting Brackets, Wiring plan pockets,



Contact Us
    Please feel free to let us know how we can help you, we are more than happy to assist you where we can...
* Required

* Required

* Required

* (10 numbers)






Error: please enable JavaScript and reload this page before using the form.




Peekn Services



























Expanded Description:
The PRCE203012 is a 200mm W x 300mm H x 120mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1032500
The PRCE203015 is a 200mm W x 300mm H x 155mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1035500
The PRCE303015 is a 300mm W x 300mm H x 155mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1036500
The PRCE303021 is a 300mm W x 300mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1033500
The PRCE303021A is a 300mm W x 300mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1033500OR
The PRCE304021 is a 300mm W x 400mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1034500
The PRCE383015 is a 380mm W x 300mm H x 155mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1030500
The PRCE383021 is a 380mm W x 300mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1031500
The PRCE383821 is a 380mm W x 380mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1380500
The PRCE383821A is a 380mm W x 380mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1380500OR
The PRCE386021 is a 380mm W x 600mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1038500
The PRCE386021A is a 380mm W x 600mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1038500OR
The PRCE386035 is a 380mm W x 600mm H x 350mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1338500
The PRCE405021 is a 400mm W x 500mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1045500
The PRCE405021A is a 400mm W x 500mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1045500OR
The PRCE408030 is a 400mm W x 800mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1037500
The PRCE505021 is a 500mm W x 500mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1050500
The PRCE505021A is a 500mm W x 500mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU105050OR
The PRCE505030 is a 500mm W x 500mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1350500
The PRCE507025 is a 500mm W x 700mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1057500
The PRCE507025A is a 500mm W x 700mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1057500OR
The PRCE603821 is a 600mm W x 380mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1039500
The PRCE603835 is a 600mm W x 380mm H x 350mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1339500
The PRCE606021 is a 600mm W x 600mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1060500
The PRCE606021A is a 600mm W x 600mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1060500OR
The PRCE606025 is a 600mm W x 600mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1054500
The PRCE606035 is a 600mm W x 600mm H x 350mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1360500
The PRCE607621 is a 600mm W x 760mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1076500
The PRCE607621A is a 600mm W x 760mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1076500OR
The PRCE607635 is a 600mm W x 760mm H x 350mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1376500
The PRCE608025 is a 600mm W x 800mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1058500
The PRCE608025A is a 600mm W x 800mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1058500OR
The PRCE6010025 is a 600mm W x 1000mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1090500
The PRCE6010025A is a 600mm W x 1000mm H x 250mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1090500OR
The PRCE6012030 is a 600mm W x 1200mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1260500
The PRCE767621 is a 760mm W x 760mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1077500
The PRCE767630 is a 760mm W x 760mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1073500
The PRCE767630A is a 760mm W x 760mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1073500OR
The PRCE806030 is a 800mm W x 600mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1055500
The PRCE8010021A is a 800mm W x 1000mm H x 210mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1055500OR
The PRCE8010030 is a 800mm W x 1000mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1180500
The PRCE8010030A is a 800mm W x 1000mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1180500OR
The PRCE8012030 is a 800mm W x 1200mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1280500
The PRCE8012030A is a 800mm W x 1200mm H x 300mm D, IP66, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE XAU1280500OR
The PRCE1007621 is a 1000mm W x 760mm H x 210mm D, IP55*, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1100500
The PRCE1007630 is a 1000mm W x 760mm H x 300mm D, IP55*, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1130500
The PRCE10010030 is a 1000mm W x 1000mm H x 300mm D, IP55*, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1110500
The PRCE10012030 is a 1000mm W x 1200mm H x 300mm D, IP55*, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1213500
The PRCE10014030 is a 1000mm W x 1400mm H x 300mm D, IP55*, Mild Steel, Industrial electrical enclosure / cabinet / switchboard. similar to AE 1114500
