Back to MS MENU GN403015 - 300W 400H x 150D


GN Electrical Enclosure Overview

GN403015 300 400 150 IP66 Mild steel electrical cabinet / enclosure / switchboard
Representative image		      The GN Series of electrical enclosures / cabinets are general purpose in nature and primarily used for the housing and protection of electrical / electronic control, intrumentation, motor control, HVAC, pneumatic, hydraulic, monitoring & distribution components.

    They are fit for use inside or outside* in Commercial, Domestic, Industrial, Residential & Retail environments (examples).

Some industry application examples:...
Airports, Automation & control, Automotive, Biotechnolgy, Chemical inustry, Control, Electrical installations, Electronic housings, Home automation, Home security, HVAC, Hydraulics, Light rail, Lightening protection, Lighting, Maritime, Measurement, Mineral oil, Mining, Monitoring, Motor controls, Natural gas, Oil refining, Paper, Pharmaceuticals, Plastics industry, Pneumatics, Power generation, Process production, Security, Traffic control, Trains, Transport, VSD, (I gave up after 3 minutes)

* Whilst our single door series are IP66 rated and finished with a UV hardened Grey powder coat for protection against direct sunlight, rain canopies are manufacturer recommended for fully exposed to rain environments, this minimizes the build up of water absorbing detritus which could undermine the enclosure IP Rating, damage the door seal &/or lead to water ingress under certain circumstances.  (This is a law of physics and equally applies to most IP55 / 66 enclosures).

Door Locking Variants
Single Point Lock 2 point Lock 1 (3) Point lock 1 (3) Point Lock
0 ~ 450H Enclosures 500 ~ 850H Enclosures 950H + Enclosures Double Door Enclosures
All Enclosures are available in RAL 7035 (Light Grey) with some enclosures available in Electrical Orange - RAL 2008 ( Bright Red Orange).

Table of Contents ITEM DETAILS @ A GLANCE
FEATURES @ A GLANCE
ACCESSORIES @ A GLANCE
DIMENSIONED DWG @ A GLANCE
COMPONENTS @ A GLANCE
COOL SOLUTIONS @ A GLANCE
CONTACT US


GN403015 - ITEM DETAILS @ A GLANCE

Description: 300W x 400H x 150D mm, IP66 Mild Steel Enclosure, RAL 7035 Grey, C/w mounting plate & cable entry (s)

Width (mm): 300       GN403015 dimensional definition of references
Height (mm): 400
Depth (mm): 150
Colour: RAL 7035 Grey
Weight (kg): 6.8
Doors: 1
Locks: 1
Cable entry: 1
Resistance to
impact: Mechanical; IK10
Degree of
protection: Environmental; IP66 - NEMA 1, 4, 12
Load capacity: Total load = 175 kg, Door: 25 kg, M/Plate: 150 kg.

Finish:  Ripple, hardened polyester powder coat, 80 ~ 120 μ, ripple pattern, UV tolerant, RAL 7035 grey.
Material:  Enclosure > Cold - rolled steel (EN 10130+A1), 1.2mm to 600H x 600W, 1.5mm above
Enclosure Door > 1.2mm to 500mm H, 1.5mm 600 ~ 800mm H, 2.0mm above.
Gland plate > Qty = 1, Cable entry = 200W x 80D
Mounting Plate > Galvanised sheet steel, 2mm, 800 mm & above have strengthening returns on either side.
Protection: Environmental; IP66 - NEMA 1, 4, 12
* Corrosion resistance according to the UNE-EN 62208 standard.
For outdoor installations the use of a canopy is recommended.
The effect of corrosion must be taken into consideration
Mechanical; IK10
Approvals  CE marking is a certification mark UL (safety organization) Bureau Veritas
/Certs*:
  * According to low tension directive 2014/35/EU.
  Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).

  Certificate UL508A.
  Bureau Veritas under norms UNE-EN 62208:2003 and UNE-EN 60529 (only for single door cabinets).





ITEM FEATURES @ A GLANCE

1.5mm Body and Door fully welded with folded front profile.
Wall mounting holes provision for in the rear body section  GN Enclosure Series from Peekn Services
Enclosure supplied with gland plate (s).
RAL 7035 UV Hardened Light Grey as standard, select models available in RAL 2008 Orange.
Enclosure supplied with gland plate (s). (shown @ top in image).
Sealed hinge / accessory fixing points either side for swapping the door hingeing.
Double bit lock insert as standard, can be replaced (see accessories).
Single point locking 400H & below, 2 point locking 500 ~ 800, 3 Point locking for 1000H + & double door enclosures. (see also"K" below).
2mm Internal mounting plate / gear tray.
Fully foamed in PU Gasket that provides IP66 Protection.
The door opening angle is 1100 as standard, they are fully reversible and mounted with concealed hinges, A door earthing stud is available.
  Pre-drilled support rails on door which additionally allow the fixing of door cross rails which can be used for component / wiring looms / cable management.


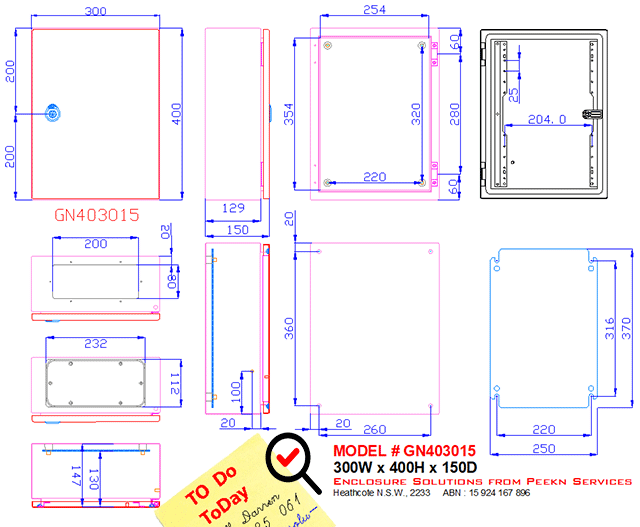

GN DIMENSIONS @ A GLANCE

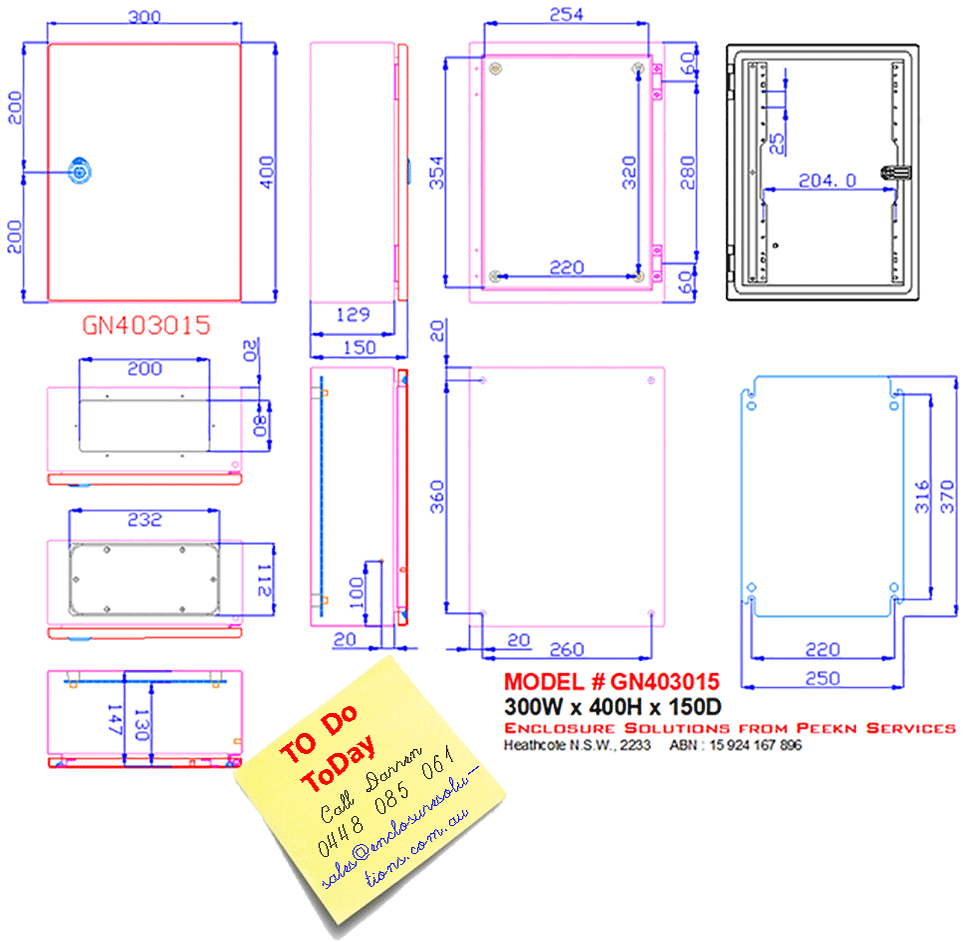

GN403015-Dimensioned-CAD-Drawing-MSB403015G
Click on a link below for the BIG PICTURE or CAD File

DIMENSIONS> GN403015 CAD BLOCK / DIMENSIONED CAD DRAWING (.gif format) MSB403015G GN403015 CAD BLOCK / DIMENSIONED CAD DRAWING (.pdf format) MSB403015G GN403015 CAD BLOCK / DIMENSIONED CAD DRAWING (.dwg format) MSB403015G GN403015 CAD BLOCK / DIMENSIONED CAD DRAWING (.dxf format) MSB403015G



ACCESSORIES @ A GLANCE

FIXING ACESSORIES FOR GN ENCLOSRES

GNWB - Wall Mounting Brackets to suit IDE Argenta Enclosures - WMB 48423 GNWB - Wall mounting brackets
Used to wall mount the enclosure with an 11mm seperation
Maximum vertical (or horizontal) load capacity of 490 kg
Material: Galvanised steel
1 Unit = pack, 4 adjustable supports
Part # GNWB - 48423 (dims)
Pole Mounting kit to suit GN Series Enclosures GNPMK - Pole mounting kit
Suits enclosures 300 ~ 800mm Wide
Effective diameter; 60 ~ 200mm, max load = 130 kg
Material: Galvanised steel
1 Unit = pack, 2 brackets + fixing accessories.
Part #  - PMK 48420
Plinth / Base to suit the GN Series of industrial electrical cabinets and enclosures. GNPL - 100mm Plinth / Base
Used for floor mounting to keep the enclosure off the ground / allow for cable entry clearance below cabinet.
Removable front & rear panels.
Material: RAL 7035 painted

Part # N/A (Please click here for a list of plinth sizes & compatible enclosure models)
DIMENSIONS> GN202015 CAD BLOCK / DIMENSIONED CAD DRAWING (.gif format) MSB202015G GN202015 CAD BLOCK / DIMENSIONED CAD DRAWING (.pdf format) MSB202015G

LOCK OPTIONS FOR GN ENCLOSURES

GN KLA333 Lock options for GN Enclosures
Keyed cylinder to replace existing double bit lock insert
Suits single door enclosures, not suitable for use on enclosures with 3 Point locking.
Supply includes cylinder keyed 333, 1 key
Part # GNKLA333


GNKLW333 Keyed Wing Handle Keyed Wing Handle to replace existing double bit lock insert.
Suits all GN Series enclosures
Supply includes cylinder keyed 333, 1 key

Part # GNKLW333


T Handle to suit GN Enclosures T Handles / Padlockable Handle
Suitable for use with all enclosures.
THNL - T Handle, Non locking, chome plated.
THKA - T Handle, keyed alike, 2 keys, chome plated.
TH92268 - T Handle, keyed 92268, 2 keys, chome plated.
THCL001 - T Handle, keyed CL001, 2 keys, chome plated.
LH-PAD - L Handle with padlock facility.

ACCESSORIES FOR THE TOP PANEL

GNEB GNLEB - Lifting eye bolts
Fitted with M12 nuts.
Cannot be used in conjuction with a rain canopy
Material: Galvanised steel
1 Unit = pack, 2 bolts + brackets / cast
Part # GNLEB - LEB 48475

Rain Canopies to suit GN Series Enclosures GNRC - Rain canopies
Used to minimize the effects of rain and air-born contaminants (detrtitus) on the PU seal at the top of the cabinet.  The top of the enclosure is protected front, back and both sides.
This is manufacturer recommended for outdoor applications.
Material: RAL 7035 painted
Part # GNRC3015 - TEJ3015G

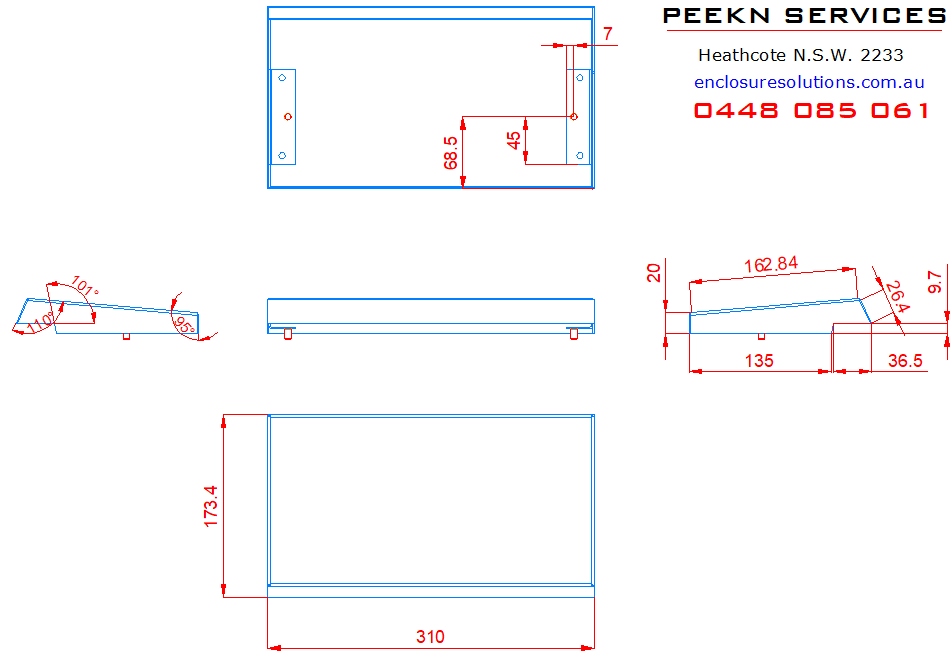

DIMENSIONS> GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.gif format) TEJ3015G GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.pdf format) TEJ3015G GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.dwg format) TEJ3015G GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.dxf format) TEJ3015G


INTERNAL ACESSORIES FOR GN ENCLOSURES


Internal door to suit GN Series Enclosures GNID - Inner door / hinged escutcheon
Reversible hinges and 900 opening.
Min clearance = 58mm, max = (D-52 mm) to front door.
Material: RAL 7035 painted
*Requires DAB... to suit enclosure depth for mounting.
Part # Not Available (please click here for models cross referenced with compatible sizes)
DIMENSIONS> GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.pdf format) TEJ3015G GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.dwg format) TEJ3015G

DIN Chassis to suit GN Series Enclosures GNDI - DIN Frame / Chassis & Escutcheon
Reversible hinges and 900 opening.
Min clearance = 58mm, max = (D-52 mm) to front door.
Material: RAL 7035 painted
*Requires DAB... to suit enclosure depth for mounting.
Not Available for this enclosure size > (GNDI Sizes)
DIMENSIONS> GNRC3015 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.dxf format) TEJ3015G

DAB150 DAB - Mounting plate adjustment brackets
Can be used to adjust the height of the mounting plate in increments of 12.5mm
Required for the installation of inner doors.
Material: Galvanised steel
1 Unit = pack, 4 adjustable supports
Part # DAB150
DIMENSIONS> Mounting Plate Depth Adjustment Bracket DAB150 / IDE SP150 to suit 150 Deep GN Series of Industrial Electrical enclosures / cabinets / switchboards Mounting Plate Depth Adjustment Bracket DAB150 / IDE SP150 to suit 150 Deep GN Series of Industrial Electrical enclosures / cabinets / switchboards Mounting Plate Depth Adjustment Bracket DAB150 / IDE SP150 to suit 150 Deep GN Series of Industrial Electrical enclosures / cabinets / switchboards https://www.enclosuresolutions.au/mswall/gn/accessories/dab/DAB150-SP150-CAD-Dimensions.dxf

COMPONENTS @ A GLANCE

    The GN Series of enclosures are complemented by a wide range of components that are available for you to include in your project.
    Please see below a very brief overview of typical electrical components used within our enclosure ranges.
    Please Note: This list is not extensive, please contact us with your enquiries for other items that we may also be able to supply.


Electrical Components for Enclosures from Peekn Services DIN Rail Electrical Components for Enclosures from Peekn Services
Terminal Blocks
Ducting
MCB's
RCD's
RCBO's
Main Switches
Isolators
Relays
Contactors
Surge Protection
Emergency Lighting
kWh Meters
Analogue Meters
Push Buttons, Selector Switches, Indicator Lights, Emergency Stop stations, Labels, Earth Bars, Neutral Links, IP66 Switchgear etc. etc.


COOL SOLUTIONS @ A GLANCE

    Feeling the Heat? (or not enough)?.  Our enclosure solutions include industrial climate control components such as Ventillation Louvres, Fan filter untits, Filter Units Fan & Filter units, Anti-condensation Heaters, Heat Exchangers, Air Conditioners, Thermostats, Hygrostats, Fan speed controllers, Enclosure Climate Monitorig & Control (web).
  COOL CALCS
Climat Control Calculations Is the HEAT ON with your Project?
We offer an obligation free climate control calculation service, have a look at the following linked PDF to see what we need to help you.
Enclosure_Solutions_Cool_Calcs.PDF
