GN Series Electrical Enclosure Overview

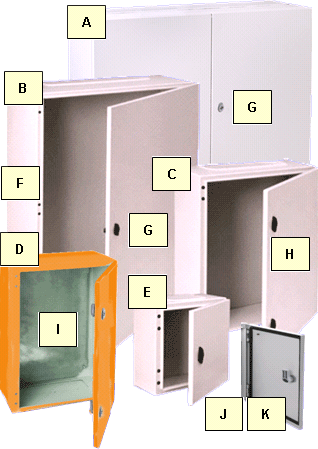

Representative image	The GN Series of electrical enclosures / cabinets are general purpose in nature and primarily used for the housing and protection of electrical / electronic control, intrumentation, motor control, HVAC, pneumatic, hydraulic, monitoring & distribution components. They are fit for use inside or outside* in Commercial, Domestic, Industrial, Residential & Retail environments (examples).
Some industry application examples:...
Airports, Automation & control, Automotive, Biotechnolgy, Chemical inustry, Control, Electrical installations, Electronic housings, Home automation, Home security, HVAC, Hydraulics, Light rail, Lightening protection, Lighting, Maritime, Measurement, Mineral oil, Mining, Monitoring, Motor controls, Natural gas, Oil refining, Paper, Pharmaceuticals, Plastics industry, Pneumatics, Power generation, Process production, Security, Traffic control, Trains, Transport, VSD....

* Whilst our single door series are IP66 rated and finished with a UV hardened Grey powder coat for protection against direct sunlight, rain canopies are manufacturer recommended for fully exposed to water / rain environments.

ITEM FEATURES @ A GLANCE

	1.5mm Body and Door fully welded with folded front profile.
	Wall mounting holes provision for in the rear body section
	Enclosure supplied with gland plate (s).
	RAL 7035 UV Hardened Light Grey as standard, select models available in RAL 2008 Orange.
	Enclosure supplied with gland plate (s). (shown @ top in image).
	Sealed hinge / accessory fixing points either side for swapping the door hingeing.
	Double bit lock insert as standard, can be replaced (see accessories).
	Single point locking 400H & below, 2 point locking 500 ~ 800, 3 Point locking for 1000H + & double door enclosures. (see also"K" below).
	2mm Internal mounting plate / gear tray.
	Fully foamed in PU Gasket that provides IP66 Protection.
	The door opening angle is 110⁰ as standard, they are fully reversible and mounted with concealed hinges, A door earthing stud is available.
	Pre-drilled support rails on door which additionally allow the fixing of door cross rails which can be used for component / wiring looms / cable management.

ENCLOSURE DIMENSIONS @ A GLANCE

We've got you sorted !

Search by Size, The table below list all current mild steel wall mounted enclosures currently available, they have been sorted WHD & HWD to suit your preferred flavour.

Width x Height x Depth	Height x Width x Depth

200 ~ 399W x H x D	200 ~ 399H x W x D
400 ~ 499W x H x D	400 ~ 599H x W x D
500 ~ 599W x H x D	600 ~ 799H x W x D
600 ~ 799W x H x D	800 ~ 999H x W x D
800 ~ 999W x H x D	1000 ~ 1199H x W x D
1000 ~ 1199W x H x D	1200 ~ 1401H x W x D
1200W x H x D

Width x Height x Depth

Model #	Width	Height	Depth	IP	Description
WHD
GN202015	200	200	150	66	Encl, RAL 7035
GN302015	200	300	150	66	Encl, RAL 7035
GN302015A	200	300	150	66	Encl, RAL 2008
GN302515	250	300	150	66	Encl, RAL 7035
GN303015	300	300	150	66	Encl, RAL 7035
GN303020	300	300	200	66	Encl, RAL 7035
GN403015	300	400	150	66	Encl, RAL 7035
GN403020	300	400	200	66	Encl, RAL 7035

Model #	Width	Height	Depth	IP	Description
WHD					DIM's Menu

GN304015	400	300	150	66	Encl, RAL 7035
GN304020	400	300	200	66	Encl, RAL 7035
GN404015	400	400	150	66	Encl, RAL 7035
GN404020	400	400	200	66	Encl, RAL 7035
GN404020A	400	400	200	66	Encl, RAL 2008
GN504015	400	500	150	66	Encl, RAL 7035
GN504020	400	500	200	66	Encl, RAL 7035
GN604020	400	600	200	66	Encl, RAL 7035
GN604020A	400	600	200	66	Encl, RAL 2008
GN604025	400	600	250	66	Encl, RAL 7035
GN604030	400	600	300	66	Encl, RAL 7035

Model #	Width	Height	Depth	IP	Description
WHD					DIM's Menu

GN505020	500	500	200	66	Encl, RAL 7035
GN605020	500	600	200	66	Encl, RAL 7035
GN705020	500	700	200	66	Encl, RAL 7035
GN705020A	500	700	200	66	Encl, RAL 2008
GN705025	500	700	250	66	Encl, RAL 7035

Model #	Width	Height	Depth	IP	Description
WHD					DIM's Menu

GN406020	600	400	200	66	Encl, RAL 7035
GN406020A	600	400	200	66	Encl, RAL 2008
GN406030	600	400	300	66	Encl, RAL 7035
GN406030A	600	400	300	66	Encl, RAL 2008
GN606020	600	600	200	66	Encl, RAL 7035
GN606020A	600	600	200	66	Encl, RAL 2008
GN606030	600	600	300	66	Encl, RAL 7035
GN606030A	600	600	300	66	Encl, RAL 2008
GN606040	600	600	400	66	Encl, RAL 7035
GN706020	600	700	200	66	Encl, RAL 7035
GN806020	600	800	200	66	Encl, RAL 7035
GN806020A	600	800	200	66	Encl, RAL 2008
GN806025	600	800	250	66	Encl, RAL 7035
GN806030	600	800	300	66	Encl, RAL 7035
GN806030A	600	800	300	66	Encl, RAL 2008
GN806040	600	800	400	66	Encl, RAL 7035
GN1006020	600	1000	200	66	Encl, RAL 7035
GN1006020A	600	1000	200	66	Encl, RAL 2008
GN1006030	600	1000	300	66	Encl, RAL 7035
GN1006030A	600	1000	300	66	Encl, RAL 2008
GN1206020	600	1200	200	66	Encl, RAL 7035
GN1206020A	600	1200	200	66	Encl, RAL 2008
GN1206030	600	1200	300	66	Encl, RAL 7035
GN1206030A	600	1200	300	66	Encl, RAL 2008
GN1206040	600	1200	400	66	Encl, RAL 7035

Model #	Width	Height	Depth	IP	Description
WHD					DIM's Menu

GN808020	800	800	200	66	Encl, RAL 7035
GN808030	800	800	300	66	Encl, RAL 7035
GN808040	800	800	400	66	Encl, RAL 7035
GN1008020	800	1000	200	66	Encl, RAL 7035
GN1008020A	800	1000	200	66	Encl, RAL 2008
GN1008025	800	1000	250	66	Encl, RAL 7035
GN1008030	800	1000	300	66	Encl, RAL 7035
GN1008030A	800	1000	300	66	Encl, RAL 2008
GN1208025	800	1200	250	66	Encl, RAL 7035
GN1208025A	800	1200	250	66	Encl, RAL 2008
GN1208030	800	1200	300	66	Encl, RAL 7035
GN1208030A	800	1200	300	66	Encl, RAL 2008

Model #	Width	Height	Depth	IP	Description
WHD					DIM's Menu

GN8010030/PD	1000	800	300	55*	Encl, 2 Doors, RAL 7035
GN10010030	1000	1000	300	66	Encl, RAL 7035
GN10010030/PD	1000	1000	300	55*	Encl, 2 Doors, RAL 7035
GN10010040	1000	1000	400	66	Encl, RAL 7035
GN12010030	1000	1200	300	66	Encl, RAL 7035
GN12014040	1000	1200	400	66	Encl, RAL 7035
GN14010030/PD	1000	1400	300	55*	Encl, 2 Doors, RAL 7035

Model #	Width	Height	Depth	IP	Description
WHD					DIM's Menu

GN8012030/PD	1200	800	300	55*	Encl, 2 Doors, RAL 7035
GN10012030/PD	1200	1000	300	55*	Encl, 2 Doors, RAL 7035
GN12012030/PD	1200	1200	300	55*	Encl, 2 Doors, RAL 7035
GN14012040/PD	1200	1400	400	55*	Encl, 2 Doors, RAL 7035


Height x Width x Depth

Model #	Height	Width	Depth	IP	Description
HWD					DIM's Menu

GN202015	200	200	150	66	Encl, RAL 7035
GN302015	300	200	150	66	Encl, RAL 7035
GN302015A	300	200	150	66	Encl, RAL 2008
GN302515	300	250	150	66	Encl, RAL 7035
GN303015	300	300	150	66	Encl, RAL 7035
GN303020	300	300	200	66	Encl, RAL 7035
GN304015	300	400	150	66	Encl, RAL 7035
GN304020	300	400	200	66	Encl, RAL 7035

Model #	Height	Width	Depth	IP	Description
HWD					DIM's Menu

GN403015	400	300	150	66	Encl, RAL 7035
GN403020	400	300	200	66	Encl, RAL 7035
GN404015	400	400	150	66	Encl, RAL 7035
GN404020	400	400	200	66	Encl, RAL 7035
GN404020A	400	400	200	66	Encl, RAL 2008
GN406020	400	600	200	66	Encl, RAL 7035
GN406020A	400	600	200	66	Encl, RAL 2008
GN406030	400	600	300	66	Encl, RAL 7035
GN406030A	400	600	300	66	Encl, RAL 2008
GN504015	500	400	150	66	Encl, RAL 7035
GN504020	500	400	200	66	Encl, RAL 7035
GN505020	500	500	200	66	Encl, RAL 7035

Model #	Height	Width	Depth	IP	Description
HWD					DIM's Menu

GN604020	600	400	200	66	Encl, RAL 7035
GN604020A	600	400	200	66	Encl, RAL 2008
GN604025	600	400	250	66	Encl, RAL 7035
GN604030	600	400	300	66	Encl, RAL 7035
GN605020	600	500	200	66	Encl, RAL 7035
GN606020	600	600	200	66	Encl, RAL 7035
GN606020A	600	600	200	66	Encl, RAL 2008
GN606030	600	600	300	66	Encl, RAL 7035
GN606030A	600	600	300	66	Encl, RAL 2008
GN606040	600	600	400	66	Encl, RAL 7035
GN705020	700	500	200	66	Encl, RAL 7035
GN705020A	700	500	200	66	Encl, RAL 2008
GN705025	700	500	250	66	Encl, RAL 7035
GN706020	700	600	200	66	Encl, RAL 7035

Model #	Height	Width	Depth	IP	Description
HWD					DIM's Menu

GN806020	800	600	200	66	Encl, RAL 7035
GN806020A	800	600	200	66	Encl, RAL 2008
GN806025	800	600	250	66	Encl, RAL 7035
GN806030	800	600	300	66	Encl, RAL 7035
GN806030A	800	600	300	66	Encl, RAL 2008
GN806040	800	600	400	66	Encl, RAL 7035
GN808020	800	800	200	66	Encl, RAL 7035
GN808030	800	800	300	66	Encl, RAL 7035
GN808040	800	800	400	66	Encl, RAL 7035
GN8010030/PD	800	1000	300	55*	Encl, 2 Doors, RAL 7035
GN8012030/PD	800	1200	300	55*	Encl, 2 Doors, RAL 7035

Model #	Height	Width	Depth	IP	Description
HWD					DIM's Menu

GN1006020	1000	600	200	66	Encl, RAL 7035
GN1006020A	1000	600	200	66	Encl, RAL 2008
GN1006030	1000	600	300	66	Encl, RAL 7035
GN1006030A	1000	600	300	66	Encl, RAL 2008
GN1008020	1000	800	200	66	Encl, RAL 7035
GN1008020A	1000	800	200	66	Encl, RAL 2008
GN1008025	1000	800	250	66	Encl, RAL 7035
GN1008030	1000	800	300	66	Encl, RAL 7035
GN1008030A	1000	800	300	66	Encl, RAL 2008
GN10010030	1000	1000	300	66	Encl, RAL 7035
GN10010030/PD	1000	1000	300	55*	Encl, 2 Doors, RAL 7035
GN10010040	1000	1000	400	66	Encl, RAL 7035
GN10012030/PD	1000	1200	300	55*	Encl, 2 Doors, RAL 7035

Model #	Height	Width	Depth	IP	Description
HWD					DIM's Menu

GN1206020	1200	600	200	66	Encl, RAL 7035
GN1206020A	1200	600	200	66	Encl, RAL 2008
GN1206030	1200	600	300	66	Encl, RAL 7035
GN1206030A	1200	600	300	66	Encl, RAL 2008
GN1206040	1200	600	400	66	Encl, RAL 7035
GN1208025	1200	800	250	66	Encl, RAL 7035
GN1208025A	1200	800	250	66	Encl, RAL 2008
GN1208030	1200	800	300	66	Encl, RAL 7035
GN1208030A	1200	800	300	66	Encl, RAL 2008
GN12010030	1200	1000	300	66	Encl, RAL 7035
GN12014040	1200	1000	400	66	Encl, RAL 7035
GN12012030/PD	1200	1200	300	55*	Encl, 2 Doors, RAL 7035

GN14010030/PD	1400	1000	300	55*	Encl, 2 Doors, RAL 7035
GN14012040/PD	1400	1200	400	55*	Encl, 2 Doors, RAL 7035

Please see below a list of standard accessories available for each of the GN Series enclosures.

Where available, the individual enclosures will detail the part # of the accessory and provide links to dimensional data in GIF / PDF / DWG or DXF formats.

FIXING ACESSORIES FOR GN ENCLOSRES

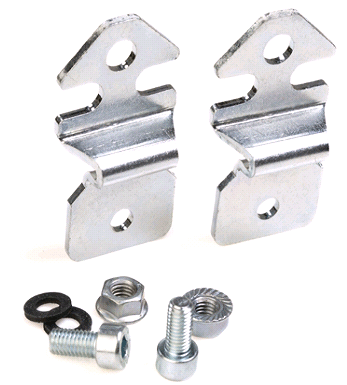

	GNWB - Wall mounting brackets
	Used to wall mount the enclosure with an 11mm seperation
	Maximum vertical (or horizontal) load capacity of 490 kg
	Material: Galvanised steel
	1 Unit = pack, 4 adjustable supports
	Part # GNWB - 48423 (dims)

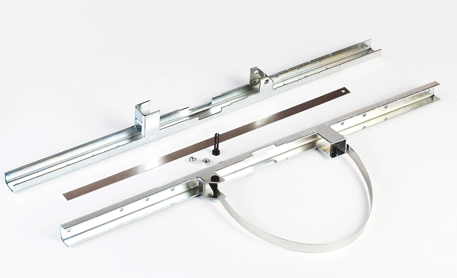

	GNPMK - Pole mounting kit
	Suits enclosures 300 ~ 800mm Wide
	Effective diameter; 60 ~ 200mm, max load = 130 kg
	Material: Galvanised steel
	1 Unit = pack, 2 brackets + fixing accessories.
	Part # - PMK 48420

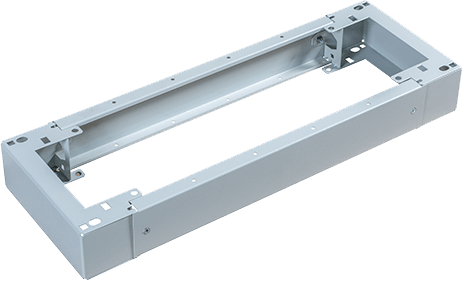

	GNPL - 100mm Plinth / Base
	Used for floor mounting to keep the enclosure off the ground / allow for cable entry clearance below cabinet.
	Removable front & rear panels.
	Material: RAL 7035 painted

	Part # N/A

LOCK OPTIONS FOR GN ENCLOSURES

	Lock options for GN Enclosures
	Keyed cylinder to replace existing double bit lock insert
	Suits single door enclosures, not suitable for use on enclosures with 3 Point locking.
	Supply includes cylinder keyed 333, 1 key
	Part # GNKLA333

	Keyed Wing Handle to replace existing double bit lock insert.
	Suits all GN Series enclosures
	Supply includes cylinder keyed 333, 1 key

	Part # GNKLW333

	T Handles / Padlockable Handle
	Suitable for use with all enclosures.
	THNL - T Handle, Non locking, chome plated.
	THKA - T Handle, keyed alike, 2 keys, chome plated.
	TH92268 - T Handle, keyed 92268, 2 keys, chome plated.
	THCL001 - T Handle, keyed CL001, 2 keys, chome plated.
	LH-PAD - L Handle with padlock facility.

ACCESSORIES FOR THE TOP PANEL

	GNLEB - Lifting eye bolts
	Fitted with M12 nuts.
	Cannot be used in conjuction with a rain canopy
	Material: Galvanised steel
	1 Unit = pack, 2 bolts + brackets / cast
	Part # GNLEB - LEB 48475

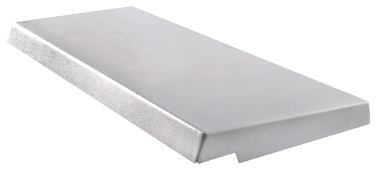

	GNRC - Rain canopies
	Used to minimize the effects of rain and air-born contaminants (detrtitus) on the PU seal at the top of the cabinet. The top of the enclosure is protected front, back and both sides.
	Material: RAL 7035 painted
	Part #

INTERNAL ACESSORIES FOR GN ENCLOSURES

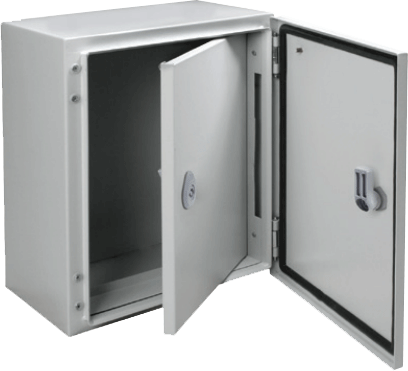

	GNID - Inner door / hinged escutcheon
	Reversible hinges and 90⁰ opening.
	Min clearance = 58mm, max = (D-52 mm) to front door.
	Material: RAL 7035 painted
	*Requires DAB... to suit enclosure depth for mounting.
	Part # GNID...

	GNDI - DIN Frame / Chassis & Escutcheon
	Reversible hinges and 90⁰ opening.
	Min clearance = 58mm, max = (D-52 mm) to front door.
	Material: RAL 7035 painted

	Part # GNDI...

	DAB - Mounting plate adjustment brackets
	Can be used to adjust the height of the mounting plate in increments of 12.5mm
	Required for the installation of inner doors.
	Material: Galvanised steel
	1 Unit = pack, 4 adjustable supports
	Part # DAB...

GN Series Dimensional Drawing

    The GN Series of enclosures are complemented by a wide range of components that are available for you to include in your project.
    Please see below a very brief overview of typical electrical components used within our enclosure ranges.
    Please Note: This list is not extensive, please contact us with your enquiries for other items that we may also be able to supply.


	DIN Rail
	Terminal Blocks
	Ducting
	MCB's
	RCD's
	RCBO's
	Main Switches
	Isolators
	Relays
	Contactors
	Surge Protection
	Emergency Lighting
	kWh Meters
	Analogue Meters
Push Buttons, Selector Switches, Indicator Lights, Emergency Stop stations, Labels
Earth Bars, Neutral Links, IP66 Switchgear

	COOL CALCS
	Is the HEAT ON with your Project?
	We offer an obligation free climate control calculation service, have a look at the following linked PDF to see what we need to help you.
	Enclosure_Solutions_Cool_Calcs.PDF
