Enclosure solutions for professionals

PSEB GN PRCE PSCM Wall Mounted Enclosure Solutions

    Enclosure Solutions from Peekn Services offer 450+ mild steel wall mounted electrical enclosures / configurations, which  range from 150 x 150 x 80 through to 1200 x 1200 x 400 (1200 x 1400 x 300).

    All enclosure systems are complimented with an accessory range designed to meet the most common applications.

    With so many sizes to choose from, please view the tables below where you are able to select your size and then match up the product family to meet your requirements, all model numbers and sizes (except the kin solutions) have been incorporated and been sorted by both Width x Height x Depth or Height x Width x Depth so thay you can browse whichever way you prefer.  (Please see below for sort options)

    Please feek free to ask any questions that come across your mind and we shall do what we can to assist you.

Wall Mounted Mild Steel Enclosures

PSEB Series hinged terminal boxes wih hinged doors

PSEB Series - IP66 Mild Steel - Hinged / Lockable Wall Mounted Terminal Box / Enclosures
16 Models,Texture powder coated RAL 7035
150H x 150W x 80D ~ 300W x 800H x 155D
Supply includes: Enclosure with 1800 hinged door, 3mm double bit cam lock(s), Internal galvanised mounting plate.
Available accessories include: Wall mounting Brackets, pole clamp, internal support rails, Earth straps, cable glands, Plastic handles, T-Handles, etc..
  Model #'s,  sizes, features, accessories, CAD etc
  PSEB Series Sizes ~ PDF (89 kb)


GN  Series - IP66 Mild Steel Wall Mounted 1 Door
65 Models,Texture powder coated RAL 7035
200W x 200H x 150D ~ 1200W x 1400H x 400D
Supply includes: Enclosure, gland plate, Internal mounting plate, double bit key lock insert, prepared for wall mounting.
Available accessories include: Wall mounting Brackets, inner doors, DIN Chassis, glands, Rain canopies, pole mounting kits, plinths, m/plate depth adjustment brackets, fan & filters, door cross rails, eye bolts, Wiring plan pockets, etc...
  Model # & sizes etc
  GN Series Sizes (all) ~ PDF (94.4 kb)

GN  Series - IP55 Mild Steel Wall Mounted Enclosures (Double Door)
7 Models,Texture powder coated RAL 7035
1000W x 800H x 3000D ~ 1200W x 1400H x 400D, 3 Point locking
Supply includes: Enclosure, mounting plate, Gland plate(s)
Available accessories include: Wall mounting Brackets, glands, Rain canopies, pole mounting kits, plinths, m/plate depth adjustment brackets, fan & filters, door cross rails, eye bolts, Wiring plan pockets, etc...
  Model # & sizes etc
  GN Series Sizes (all) ~ PDF (94.4 kb)

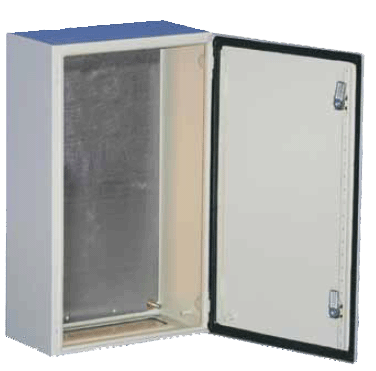

PRCE Series IP66 Mild Steel Enclosures - Rittal AE

PRCE  Series - IP66 Mild Steel Wall Mounted Enclosures (Single Door)
46 Models,Texture powder coated RAL 7035
200W x 300H x 120D ~ 800W x 1200H x 350D
Supply includes: Enclosure, Internal mounting plate, double bit lock(s), gland plate(s)
Available accessories include: Wall mounting Brackets, pole clamp, internal support rails, Earth straps, cable glands, Plastic handles, T-Handles, 19" Swing frames, Inner Door, Plinths, Door switches, Door Stays, Lighting, Door dust guard, Wiring plan pockets, etc..
  Model # & sizes etc
  PRCE Series Sizes (all) ~ PDF

PRCE Series IP55 Mild Steel Enclosures

PRCE  Series - IP55 Mild Steel Wall Mounted Enclosures (2 Door)
5 Models,Texture powder coated RAL 7035
1000H x 760W x 210D ~ 1000W x 1400H x 300D
Supply includes:  Enclosure, Internal mounting plate, double bit lock(s), gland plate(s)
Available accessories include: Wall mounting Brackets, pole clamp, internal support rails, Earth straps, cable glands, Lock options,  Plinths, Door switches, Door Stays, Lighting, Door dust guard, Wiring plan pockets, etc..
  Model # & sizes etc
  PRCE Series Sizes (all) ~ PDF

IP55 PSCM Series free standing electrical enclosures

PSCM  Series - IP55 Mild Steel Enclosures (Single / Double Door)
14Models,Texture powder coated RAL 70355
600W600W x 800W x 300D ~ 1200W x 1400H x 400D
Supply includes: Enclosure, Mounting Plate, 3 point locking system, NO gland plates.
Please Note: Gland plates need to be ordered additionally to achieve the IP55 rating. see specific item details for available configurations.
Available accessories include: Locking options, Gland plates, cable entry plates, Cable management rails, Rails for interior installation, Rain canopies, Plinths, Wiring plan pockets, Folding lever handle, etc....
  Model # & sizes etc
  PSCM Sizes PDF (95kb)


GN KIT OVERVIEW @ A GLANCE
    To assist our clients, we have developed time saving KIT part numbers for some of the common enclosures configurations.
    This saves time as all components / accessories / fixing kits are included in the 1 Bill Of Materials.
    In addition to saving time, you will find that ordering a "kit" may well save for a few $$$....

IDE Argenta GNC Series Enclosure System GNRC -K Series
72 Models,  wip > please ask
Enclosure + Rain canopy + fixing accessories.



IDE Argenta GNPL Enclosure Series GNPL -K Series
34 Models, 600W x 250D ~  1200W x 300D
Enclosure + Plinth + fixing accessories.




IDE Argenta GNCPL Series GNCPL - K Series
34 Models, 600W x 250D ~  1200W x 300D
Enclosure + Rain canopy + Plinth + fixing accessories.




IDE Argenta GNPM Enclosure Series GNPM - K Series
59 Models, all enclosures 300W ~ 800W
Enclosure + Pole mounting kit + fixing accessories.



IDE Argenta GNCPM Enclosure Series GNCPM - K Series
59 Models, all enclosures 300W ~ 800W
Enclosure + Rain canopy + Pole mounting kit + fixing accessories.




IP66 Encl;osure with DIN CBUS - sub distribution board assembly kit GNDI - K Series
19 Models, 45 ~ 156 Module capacity
Enclosure + DIN Chassis + removable Escutcheon + fixing accessories.




IDE Argenta GNID Series Enclosure GNID - K Series
44 Models, 400W x 400H ~ 800W x 1200H
Enclosure + Inner door / hinged escutcheon + Assembly brackets + fixing accessories.






We've got you sorted !

Search by Size, The table below list all current mild steel wall mounted* enclosures currently available, they have been sorted WHD & HWD to suit your preferred flavour.
 * The PRCM Series is more a floor mounted enclosure listed only because of the close similarity in sizes.

Width x Height x Depth Height x Width x Depth

150 ~ 200 ~ 250 Wide 150 ~ 200 High x W x D
300 ~ 380 Wide 300 High x W x D
400 Wide x H x D 380 ~ 400 High x W x D
500 Wide x H x D 500 High x W x D
600 Wide x H x D 600 High x W x D
760 ~ 800 Wide x H x D 700 ~ 760 High x W x D
1000 Wide x H x D 800 High x W x D
1200 Wide x H x D 1000 High x W x D
1200 High x W x D
1400 High x W x D



GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
PSEB151508 150 150 80 66 Encl, RAL 7035
PSEB151512 150 150 120 66 Encl, RAL 7035
PSEB153008 150 300 80 66 Encl, RAL 7035
PSEB153012 150 300 120 66 Encl, RAL 7035
PSEB202008 200 200 80 66 Encl, RAL 7035
PSEB202012 200 200 120 66 Encl, RAL 7035
GN202015 200 200 150 66 Encl, RAL 7035
PSEB203008 200 300 80 66 Encl, RAL 7035
PSEB203012 200 300 120 66 Encl, RAL 7035
PRCE203012 200 300 120 66 Encl, RAL 7035
GN302015 200 300 150 66 Encl, RAL 7035
GN302015A 200 300 150 66 Encl, RAL 2008
PRCE203015 200 300 155 66 Encl, RAL 7035
PSEB204008 200 400 80 66 Encl, RAL 7035
PSEB204012 200 400 120 66 Encl, RAL 7035
PSEB205012 200 500 120 66 Encl, RAL 7035
GN302515 250 300 150 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
PSEB303012 300 300 120 66 Encl, RAL 7035
GN3030150 300 300 150 66 Encl, RAL 7035
PRCE303015 300 300 155 66 Encl, RAL 7035
GN303020 300 300 200 66 Encl, RAL 7035
PRCE303021 300 300 210 66 Encl, RAL 7035
PRCE303021A 300 300 210 66 Encl, X15 Orange
PSEB304012 300 400 120 66 Encl, RAL 7035
GN403015 300 400 150 66 Encl, RAL 7035
PSEB304015 300 400 155 66 Encl, RAL 7035
GN403020 300 400 200 66 Encl, RAL 7035
PRCE304021 300 400 210 66 Encl, RAL 7035
PSEB306015 300 600 155 66 Encl, RAL 7035
PSEB308015 300 800 155 66 Encl, RAL 7035
PRCE383015 380 300 155 66 Encl, RAL 7035
PRCE383021 380 300 210 66 Encl, RAL 7035
PRCE383821 380 380 210 66 Encl, RAL 7035
PRCE383821A 380 380 210 66 Encl, X15 Orange
PRCE386021 380 600 210 66 Encl, RAL 7035
PRCE386021A 380 600 210 66 Encl, X15 Orange
PRCE386035 380 600 350 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
GN304015 400 300 150 66 Encl, RAL 7035
GN304020 400 300 200 66 Encl, RAL 7035
GN404015 400 400 150 66 Encl, RAL 7035
GN404020 400 400 200 66 Encl, RAL 7035
GN404020A 400 400 200 66 Encl, RAL 2008
GN504015 400 500 150 66 Encl, RAL 7035
GN504020 400 500 200 66 Encl, RAL 7035
PRCE405021 400 500 210 66 Encl, RAL 7035
PRCE405021A 400 500 210 66 Encl, X15 Orange
GN604020 400 600 200 66 Encl, RAL 7035
GN604020A 400 600 200 66 Encl, RAL 2008
GN604025 400 600 250 66 Encl, RAL 7035
GN604030 400 600 300 66 Encl, RAL 7035
PRCE408030 400 800 300 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
GN505020 500 500 200 66 Encl, RAL 7035
PRCE505021 500 500 210 66 Encl, RAL 7035
PRCE505021A 500 500 210 66 Encl, X15 Orange
PRCE505030 500 500 300 66 Encl, RAL 7035
GN605020 500 600 200 66 Encl, RAL 7035
GN705020 500 700 200 66 Encl, RAL 7035
GN705020A 500 700 200 66 Encl, RAL 2008
GN705025 500 700 250 66 Encl, RAL 7035
PRCE507025 500 700 250 66 Encl, RAL 7035
PRCE507025A 500 700 250 66 Encl, X15 Orange

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
PRCE603821 600 380 210 66 Encl, RAL 7035
PRCE603835 600 380 350 66 Encl, RAL 7035
GN406020 600 400 200 66 Encl, RAL 7035
GN406020A 600 400 200 66 Encl, RAL 2008
GN406030 600 400 300 66 Encl, RAL 7035
GN406030A 600 400 300 66 Encl, RAL 7035
GN606020 600 600 200 66 Encl, RAL 7035
GN606020A 600 600 200 66 Encl, RAL 2008
PRCE606021 600 600 210 66 Encl, RAL 7035
PRCE606021A 600 600 210 66 Encl, RAL 7035
PRCE606025 600 600 250 66 Encl, RAL 7035
GN606030 600 600 300 66 Encl, RAL 7035
GN606030A 600 600 300 66 Encl, RAL 2008
PRCE606035 600 600 350 66 Encl, RAL 7035
GN606040 600 600 400 66 Encl, RAL 7035
GN706020 600 700 200 66 Encl, RAL 7035
PRCE607621 600 760 210 66 Encl, RAL 7035
PRCE607621A 600 760 210 66 Encl, X15 Orange
PRCE607635 600 760 350 66 Encl, RAL 7035
GN806020 600 800 200 66 Encl, RAL 7035
GN806020A 600 800 200 66 Encl, RAL 2008
GN806025 600 800 250 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
PRCE608025 600 800 250 66 Encl, RAL 7035
PRCE608025A 600 800 250 66 Encl, X15 Orange
GN806030 600 800 300 66 Encl, RAL 7035
GN806030A 600 800 300 66 Encl, RAL 2008
GN806040 600 800 400 66 Encl, RAL 7035
PSCM608040 600 800 400 55* Encl, RAL 7035
GN1006020 600 1000 200 66 Encl, RAL 7035
GN1006020A 600 1000 200 66 Encl, RAL 2008
PRCE6010025 600 1000 250 66 Encl, RAL 7035
PRCE6010025A 600 1000 250 66 Encl, RAL 7035
GN1006030 600 1000 300 66 Encl, RAL 7035
GN1006030A 600 1000 300 66 Encl, RAL 7035
PSCM601040 600 1000 400 55* Encl, RAL 2008
GN1206020 600 1200 200 66 Encl, RAL 7035
GN1206020A 600 1200 200 66 Encl, RAL 2008
GN1206030 600 1200 300 66 Encl, RAL 7035
GN1206030A 600 1200 300 66 Encl, RAL 2008
PRCE6012030 600 1200 300 66 Encl, RAL 7035
PSCM601230 600 1200 300 55* Encl, RAL 7035
GN1206040 600 1200 400 66 Encl, RAL 7035
PSCM601240 600 1200 400 55* Encl, RAL 7035
* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
PRCE767621 760 760 210 66 Encl, RAL 7035
PRCE767630 760 760 300 66 Encl, RAL 7035
PRCE767630A 760 760 300 66 Encl, X15 Orange
PRCE806030 800 600 300 66 Encl, RAL 7035
GN808020 800 800 200 66 Encl, RAL 7035
GN808030 800 800 300 66 Encl, RAL 7035
GN808040 800 800 400 66 Encl, RAL 7035
GN1008020 800 1000 200 66 Encl, RAL 7035
GN1008020A 800 1000 200 66 Encl, RAL 2008
PRCE8010021A 800 1000 210 66 Encl, X15 Orange
GN1008025 800 1000 250 66 Encl, RAL 7035
GN1008030 800 1000 300 66 Encl, RAL 7035
GN1008030A 800 1000 300 66 Encl, RAL 2008
PRCE8010030 800 1000 300 66 Encl, RAL 7035
PRCE8010030A 800 1000 300 66 Encl, X15 Orange
PSCM801030 800 1000 300 55* Encl, RAL 7035
PSCM801040 800 1000 400 55* Encl, RAL 7035
GN1208025 800 1200 250 66 Encl, RAL 7035
GN1208025A 800 1200 250 66 Encl, RAL 2008
GN1208030 800 1200 300 66 Encl, RAL 7035
GN1208030A 800 1200 300 66 Encl, RAL 2008
PRCE8012030 800 1200 300 66 Encl, RAL 7035
PRCE8012030A 800 1200 300 66 Encl, X15 Orange
PSCM801230 800 1200 300 55* Encl, RAL 7035
PSCM801240 800 1200 400 55* Encl, RAL 7035

* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
PRCE1007621 1000 760 210 66 Encl, RAL 7035
PRCE1007630 1000 760 300 66 Encl, RAL 7035
GN8010030/PD 1000 800 300 55 Encl, 2 Doors, RAL 7035
GN10010030 1000 1000 300 66 Encl, RAL 7035
GN10010030/PD 1000 1000 300 55 Encl, 2 Doors, RAL 7035
PRCE10010030 1000 1000 300 66 Encl, RAL 7035
PSCM101030 1000 1000 300 55* Encl, 2 Doors, RAL 7035
GN10010040 1000 1000 400 66 Encl, RAL 7035
GN12010030 1000 1200 300 66 Encl, RAL 7035
PRCE10012030 1000 1200 300 66 Encl, RAL 7035
PSCM101230 1000 1200 300 55* Encl, 2 Doors, RAL 7035
GN12014040 1000 1200 400 66 Encl, RAL 7035
PSCM101240 1000 1200 400 55* Encl, 2 Doors, RAL 7035
GN14010030/PD 1000 1400 300 55 Encl, 2 Doors, RAL 7035
PRCE10014030 1000 1400 300 66 Encl, RAL 7035
PSCM101430 1000 1400 300 55* Encl, 2 Doors, RAL 7035
PSCM101440 1000 1400 400 55* Encl, 2 Doors, RAL 7035

* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Width Height Depth IP Description
WxHxD
GN8012030/PD 1200 800 300 55 Encl, 2 Doors, RAL 7035
GN10012030/PD 1200 1000 300 55 Encl, 2 Doors, RAL 7035
GN12012030/PD 1200 1200 300 55 Encl, 2 Doors, RAL 7035
PSCM121240 1200 1200 400 55* Encl, 2 Doors, RAL 7035
GN14012030/PD 1200 1400 300 55 Encl, 2 Doors, RAL 7035
* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

SORT ORDER > Height x Width x Depth.

Model # Height Width Depth IP Description
HxWxD
PSEB151508 150 150 80 66 Encl, RAL 7035
PSEB151512 150 150 120 66 Encl, RAL 7035
PSEB202008 200 200 80 66 Encl, RAL 7035
PSEB202012 200 200 120 66 Encl, RAL 7035
GN202015 200 200 150 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
PSEB153008 300 150 80 66 Encl, RAL 7035
PSEB153012 300 150 120 66 Encl, RAL 7035
PSEB203008 300 200 80 66 Encl, RAL 7035
PSEB203012 300 200 120 66 Encl, RAL 7035
PRCE203012 300 200 120 66 Encl, RAL 7035
GN302015 300 200 150 66 Encl, RAL 7035
GN302015A 300 200 150 66 Encl, RAL 2008
PRCE203015 300 200 155 66 Encl, RAL 7035
GN302515 300 250 150 66 Encl, RAL 7035
PSEB303012 300 300 120 66 Encl, RAL 7035
GN303015 300 300 150 66 Encl, RAL 7035
PRCE303015 300 300 155 66 Encl, RAL 7035
GN303020 300 300 200 66 Encl, RAL 7035
PRCE303021 300 300 210 66 Encl, RAL 7035
PRCE303021A 300 300 210 66 Encl, X15 Orange
PRCE383015 300 380 155 66 Encl, RAL 7035
PRCE383021 300 380 210 66 Encl, RAL 7035
GN304015 300 400 150 66 Encl, RAL 7035
GN304020 300 400 200 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
PRCE383821 380 380 210 66 Encl, RAL 7035
PRCE383821A 380 380 210 66 Encl, X15 Orange
PRCE603821 380 600 210 66 Encl, RAL 7035
PRCE603835 380 600 350 66 Encl, RAL 7035
PSEB204008 400 200 80 66 Encl, RAL 7035
PSEB204012 400 200 120 66 Encl, RAL 7035
PSEB304012 400 300 120 66 Encl, RAL 7035
GN403015 400 300 150 66 Encl, RAL 7035
PSEB304015 400 300 155 66 Encl, RAL 7035
GN403020 400 300 200 66 Encl, RAL 7035
PRCE304021 400 300 210 66 Encl, RAL 7035
GN404015 400 400 150 66 Encl, RAL 7035
GN404020 400 400 200 66 Encl, RAL 7035
GN404020A 400 400 200 66 Encl, RAL 2008
GN406020 400 600 200 66 Encl, RAL 7035
GN406020A 400 600 200 66 Encl, RAL 2008
GN406030 400 600 300 66 Encl, RAL 7035
GN406030A 400 600 300 66 Encl, RAL 2008

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
PSEB205012 500 200 120 66 Encl, RAL 7035
GN504015 500 400 150 66 Encl, RAL 7035
GN504020 500 400 200 66 Encl, RAL 7035
PRCE405021 500 400 210 66 Encl, RAL 7035
PRCE405021A 500 400 210 66 Encl, X15 Orange
GN505020 500 500 200 66 Encl, RAL 7035
PRCE505021 500 500 210 66 Encl, RAL 7035
PRCE505021A 500 500 210 66 Encl, X15 Orange
PRCE505030 500 500 300 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
PSEB306015 600 300 155 66 Encl, RAL 7035
PRCE386021 600 380 210 66 Encl, RAL 7035
PRCE386021A 600 380 210 66 Encl, X15 Orange
PRCE386035 600 380 350 66 Encl, RAL 7035
GN604020 600 400 200 66 Encl, RAL 7035
GN604020A 600 400 200 66 Encl, RAL 2008
GN604025 600 400 250 66 Encl, RAL 7035
GN604030 600 400 300 66 Encl, RAL 7035
GN605020 600 500 200 66 Encl, RAL 7035
GN606020 600 600 200 66 Encl, RAL 7035
GN606020A 600 600 200 66 Encl, RAL 2008
PRCE606021 600 600 210 66 Encl, RAL 7035
PRCE606021A 600 600 210 66 Encl, RAL 7035
PRCE606025 600 600 250 66 Encl, RAL 7035
GN606030 600 600 300 66 Encl, RAL 7035
GN606030A 600 600 300 66 Encl, RAL 2008
PRCE606035 600 600 350 66 Encl, RAL 7035
GN606040 600 600 400 66 Encl, RAL 7035
PRCE806030 600 800 300 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
GN705020 700 500 200 66 Encl, RAL 7035
GN705020A 700 500 200 66 Encl, RAL 2008
GN705025 700 500 250 66 Encl, RAL 7035
PRCE507025 700 500 250 66 Encl, RAL 7035
PRCE507025A 700 500 250 66 Encl, X15 Orange
GN706020 700 600 200 66 Encl, RAL 7035
PRCE607621 760 600 210 66 Encl, RAL 7035
PRCE607621A 760 600 210 66 Encl, X15 Orange
PRCE607635 760 600 350 66 Encl, RAL 7035
PRCE767621 760 760 210 66 Encl, RAL 7035
PRCE767630 760 760 300 66 Encl, RAL 7035
PRCE767630A 760 760 300 66 Encl, X15 Orange
PRCE1007621 760 1000 210 66 Encl, RAL 7035
PRCE1007630 760 1000 300 66 Encl, RAL 7035

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
PSEB308015 800 300 155 66 Encl, RAL 7035
PRCE408030 800 400 300 66 Encl, RAL 7035
GN806020 800 600 200 66 Encl, RAL 7035
GN806020A 800 600 200 66 Encl, RAL 2008
GN806025 800 600 250 66 Encl, RAL 7035
PRCE608025 800 600 250 66 Encl, RAL 7035
PRCE608025A 800 600 250 66 Encl, X15 Orange
GN806030 800 600 300 66 Encl, RAL 7035
GN806030A 800 600 300 66 Encl, RAL 2008
GN806040 800 600 400 66 Encl, RAL 7035
PSCM608040 800 600 400 55* Encl, RAL 7035
GN808020 800 800 200 66 Encl, RAL 7035
GN808030 800 800 300 66 Encl, RAL 7035
GN808040 800 800 400 66 Encl, RAL 7035
GN8010030/PD 800 1000 300 55 Encl, 2 Doors, RAL 7035
GN8012030/PD 800 1200 300 55 Encl, 2 Doors, RAL 7035

* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
GN1006020 1000 600 200 66 Encl, RAL 7035
GN1006020A 1000 600 200 66 Encl, RAL 2008
PRCE6010025 1000 600 250 66 Encl, RAL 7035
PRCE6010025A 1000 600 250 66 Encl, RAL 7035
GN1006030 1000 600 300 66 Encl, RAL 7035
GN1006030A 1000 600 300 66 Encl, RAL 2008
PSCM601040 1000 600 400 55* Encl, RAL 7035
GN1008020 1000 800 200 66 Encl, RAL 7035
GN1008020A 1000 800 200 66 Encl, RAL 2008
PRCE8010021A 1000 800 210 66 Encl, X15 Orange
GN1008025 1000 800 250 66 Encl, RAL 7035
GN1008030 1000 800 300 66 Encl, RAL 7035
GN1008030A 1000 800 300 66 Encl, RAL 2008
PRCE8010030 1000 800 300 66 Encl, RAL 7035
PRCE8010030A 1000 800 300 66 Encl, X15 Orange
PSCM801030 1000 800 300 55* Encl, RAL 7035
PSCM801040 1000 800 400 55* Encl, RAL 7035
GN10010030 1000 1000 300 66 Encl, RAL 7035
GN10010030/PD 1000 1000 300 55 Encl, 2 Doors, RAL 7035
PRCE10010030 1000 1000 300 66 Encl, RAL 7035
PSCM101030 1000 1000 300 55* Encl, 2 Doors, RAL 7035
GN10010040 1000 1000 400 66 Encl, RAL 7035
GN10012030/PD 1000 1200 300 55 Encl, 2 Doors, RAL 7035
GN1206020 1200 600 200 66 Encl, RAL 7035

* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
GN1206020A 1200 600 200 66 Encl, RAL 2008
GN1206030 1200 600 300 66 Encl, RAL 7035
GN1206030A 1200 600 300 66 Encl, RAL 2008
PRCE6012030 1200 600 300 66 Encl, RAL 7035
PSCM601230 1200 600 300 55* Encl, RAL 7035
GN1206040 1200 600 400 66 Encl, RAL 7035
PSCM601240 1200 600 400 55* Encl, RAL 7035
GN1208025 1200 800 250 66 Encl, RAL 7035
GN1208025A 1200 800 250 66 Encl, RAL 2008
GN1208030 1200 800 300 66 Encl, RAL 7035
GN1208030A 1200 800 300 66 Encl, RAL 2008
PRCE8012030 1200 800 300 66 Encl, RAL 7035
PRCE8012030A 1200 800 300 66 Encl, X15 Orange
PSCM801230 1200 800 300 55* Encl, RAL 7035
PSCM801240 1200 800 400 55* Encl, RAL 7035
GN12010030 1200 1000 300 66 Encl, RAL 7035
PRCE10012030 1200 1000 300 66 Encl, RAL 7035
PSCM101230 1200 1000 300 55* Encl, 2 Doors, RAL 7035
GN12014040 1200 1000 400 66 Encl, RAL 7035
PSCM101240 1200 1000 400 55* Encl, 2 Doors, RAL 7035
GN12012030/PD 1200 1200 300 55 Encl, 2 Doors, RAL 7035
PSCM121240 1200 1200 400 55* Encl, 2 Doors, RAL 7035

* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series

Model # Height Width Depth IP Description
HxWxD
GN14010030/PD 1400 1000 300 55 Encl, 2 Doors, RAL 7035
PRCE10014030 1400 1000 300 66 Encl, RAL 7035
PSCM101430 1400 1000 300 55* Encl, 2 Doors, RAL 7035
PSCM101440 1400 1000 400 55* Encl, 2 Doors, RAL 7035
GN14012030/PD 1400 1200 300 55 Encl, 2 Doors, RAL 7035

* IP55 when optional gland plates are installed.

GOTO >> PSEB Series GN Series PRCE Series PSCM Series



* Required

* Required

* Required

* (10 numbers)






Error: please enable JavaScript and reload this page before using the form.





Home

About

Contact

Feedback

+ U R Here +

Mild Steel Enclosures

PSEB Series

GN Series

GN Kit Series

PRCE Series

PSCM Series

+++++

Similar Sizes

Fibreglass Enclosures

Stainless Enclosures

+++++

Enclosure Types

Terminal Boxes

Free Standing Series

Home Automation

Electrical Sub Boards

3P Switchboards

Climate Control



Peekn Services

Footer start > Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233



Mobile Service: 0448 085 061,  About Us :: Contact Us
