Enclosure solutions for professionals

Mild Steel Wall Mounted Enclosure Solutions
from Peekn Services
Xyz Models

    Peekn Services provide Enclosure Solutions, our portfolio of general purpose enclosures include the PSEB low profile series, the GN & PRCE Series which have both wall / free - standing single & double door versions moving towards the PSCM Series which are more a mid-range, floor mounted enclosure variant.
    Each Enclosure Series provides it's own set of specific features and can in the main be differentiated by A) the physical size, B) the accessory specific accessory range associated with that particular model & C) some specific applications that they may best meet.
    If you are looking for a specific size for general applications, you may wish to view all available sizes which have been conveniently sorted :-
- Height x Width x Depth or
- Width x Height x Depth below

https://www.enclosuresolutions.com.au/FRP-GRP_Series.htmll

Wall Mounted Enclosures

IP66 / IP Mild Steel Solutions

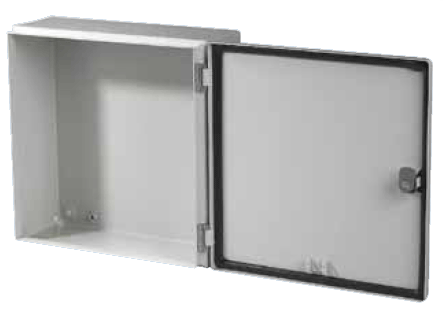

PSEB Hinged electrical Terminal - Junction box

PSEB Series - IP66 Mild Steel - Hinged / Lockable Wall Mounted Enclosures
16 Models,Texture powder coated RAL 7035
150H x 150W x 80D ~ 300W x 800H x 155D (selected sizes)
Supply includes: Enclosure with 1800 hinged door, 3mm double bit cam lock(s), Internal galvanised mounting plate.
Available accessories include: Wall mounting Brackets, Locking options, Glands, Milling service
  Resources : PSEB Product Page
    PSEB_Sizes.PDF

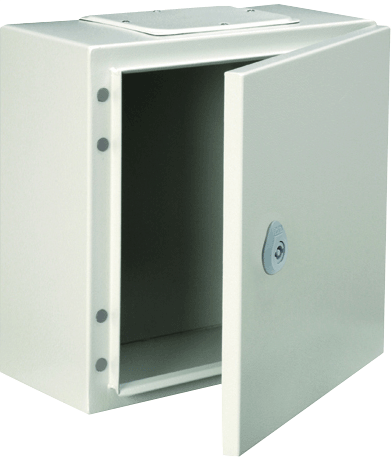

GN Mild Steel Electrical enclosure Series  GN  Series - IP66 Mild Steel Wall Mounted Wall Mounted Enclosures (Single Door)
65 Models,Texture powder coated RAL 7035 / RAL 2008
200H x 200W x 150D ~ 1000W x 1200H x 400D (selected sizes)
Supply includes: Enclosure, Mounting Plate, 5mm Double bit lock insert(s), Gland plate
Available accessories include: Wall mounting Brackets, Pole mounting kits*, Locking options, Rain canopies*, DIN frames*, Inner doors*, M/Pl DAB, Plinths*
* Not available for all models

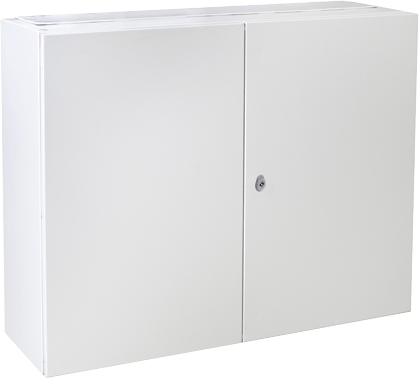

GN IP55 MS Electrical Enclosure Series

GN Series - IP55 Mild Steel Wall Mounted Enclosures (Double Door)
7 Models,Texture powder coated RAL 7035
1000W x 800H x 300D ~ 1200W x 1400H x 500D (selected sizes)
Supply includes: Enclosure, Mounting Plate, 5mm Double bit lock, (3 Point locking), Gland plate(s)
Available accessories include: Wall mounting Brackets, xxx Mounting plates

  Resources : GN Product Page

    GN Sizes.PDF

PRCE Series IP66 Mild Steel Enclosures - Rittal AE

PRCE  Series - IP66 Mild Steel Wall Mounted Enclosures (Single Door)
44 Models,Texture powder coated RAL 7035 / X15
200W x 300H x 120D ~ 800W x 1200H x 300D
Supply includes: Enclosure, Mounting Plate
Available accessories include: Wall mounting Brackets, xxx Mounting plates

PRCE Series IP55 Mild Steel Enclosures

PRCE  Series - IP55 Mild Steel Wall Mounted Enclosures (2 Door)
5 Models,Texture powder coated RAL 7035
1000W x 760W x 210D ~ 100W x 1400H x 300D
Supply includes: Enclosure, Mounting Plate
Available accessories include: Wall mounting Brackets, xxx Mounting plates
  Resources : PRCE Product Page
    PRCE Sizes.PDF

PSCM Series Enclosures from Peekn Services

PSCM  Series - IP55 Mild Steel Wall Mounted Enclosures (1 Door)
8 Models,Texture powder coated RAL 7035
800W x 800H x 300D ~ 1200W x 1400H x 400D
Supply includes: Enclosure, Open base, Mounting Plate
Available accessories include: Wall mounting Brackets, xxx Mounting plates

PSCM Series from Peeln Services

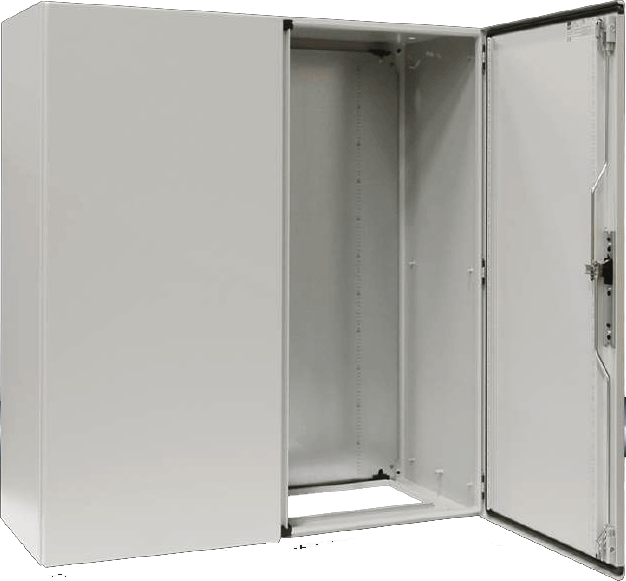

PSCM  Series - IP55 Mild Steel Wall Mounted Enclosures (2 Door)
5 Models,Texture powder coated RAL 7035
xxxH x 150W x 80D ~ 300W x 800H x 155D
Supply includes: Enclosure, Mounting Plate
Available accessories include: Wall mounting Brackets, xxx Mounting plates
  Resources : PSCM Product Page
    PSCM Sizes.PDF


NAVIGATE >
 PSEB Series / GN Series I / GN Series II / GN Series III / GN Series IV
/ PRCE Series / PRCM Series > or Sorted HxWxD / WxHxD


WIDTH = 150mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating
PSEB151508 150 150 80 1 1 1.7 IP66 RAL 7035 Grey
PSEB151512 150 150 120 1 1 2 IP66 RAL 7035 Grey
PSEB153008 150 300 80 1 1 2.6 IP66 RAL 7035 Grey
PSEB153012 150 300 120 1 1 3 IP66 RAL 7035 Grey
PSEB202008 200 200 80 1 1 2.4 IP66 RAL 7035 Grey
PSEB202012 200 200 120 1 1 2.8 IP66 RAL 7035 Grey
GN202015 200 200 150 1 1 2.5 IP66 RAL 7035 Grey
PSEB203008 200 300 80 1 1 3.2 IP66 RAL 7035 Grey
PSEB203012 200 300 120 1 1 3.6 IP66 RAL 7035 Grey
PRCE203012 200 300 120 1 1 4 IP66 RAL 7035 Grey
GN302015 200 300 150 1 1 3.9 IP66 RAL 7035 Grey
GN302015A 200 300 150 1 1 3.9 IP66 RAL 2008 Orange
PRCE203015 200 300 155 1 1 4.5 IP66 RAL 7035 Grey
PSEB204008 200 400 80 1 1 4.4 IP66 RAL 7035 Grey
PSEB204012 200 400 120 1 1 5 IP66 RAL 7035 Grey
PSEB205012 200 500 120 1 1 6.2 IP66 RAL 7035 Grey
GN302515 250 300 150 1 1 4.6 IP66 RAL 7035 Grey

WIDTH = 300mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

PSEB303012 300 300 120 1 1 5 IP66 RAL 7035 Grey
GN303015 300 300 150 1 1 5.4 IP66 RAL 7035 Grey
PRCE303015 300 300 155 1 1 61.1 IP66 RAL 7035 Grey
GN303020 300 300 200 1 1 6.1 IP66 RAL 7035 Grey
PRCE303021 300 300 210 1 1 7 IP66 RAL 7035 Grey
PRCE303021A 300 300 210 1 1 7 IP66 X15 Orange
PSEB304012 300 400 120 1 1 6.4 IP66 RAL 7035 Grey
GN403015 300 400 150 1 1 6.8 IP66 RAL 7035 Grey
PSEB304015 300 400 155 1 2 7.1 IP66 RAL 7035 Grey
GN403020 300 400 200 1 1 7.4 IP66 RAL 7035 Grey
PRCE304021 300 400 210 1 1 8.8 IP66 RAL 7035 Grey
PSEB306015 300 600 155 1 2 11 IP66 RAL 7035 Grey
PSEB308015 300 800 155 1 2 13.2 IP66 RAL 7035 Grey

WIDTH = 380mm +

PRCE383015 380 300 155 1 1 7.4 IP66 RAL 7035 Grey
PRCE383021 380 300 210 1 1 7.5 IP66 RAL 7035 Grey
PRCE383821 380 380 210 1 1 9.8 IP66 RAL 7035 Grey
PRCE383821A 380 380 210 1 1 9.8 IP66 X15 Orange
PRCE386021 380 600 210 1 2 15.6 IP66 RAL 7035 Grey
PRCE386021A 380 600 210 1 2 15.6 IP66 X15 Orange
PRCE386035 380 600 350 1 2 19.4 IP66 RAL 7035 Grey

WIDTH = 400mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

GN304015 400 300 150 1 1 6.5 IP66 RAL 7035 Grey
GN304020 400 300 200 1 1 7.4 IP66 RAL 7035 Grey
GN404015 400 400 150 1 1 8.2 IP66 RAL 7035 Grey
GN404020 400 400 200 1 1 9.6 IP66 RAL 7035 Grey
GN404020A 400 400 200 1 1 9.6 IP66 RAL 2008 Orange
GN504015 400 500 150 1 2 10.8 IP66 RAL 7035 Grey
GN504020 400 500 200 1 2 11.4 IP66 RAL 7035 Grey
PRCE405021 400 500 210 1 1 13 IP66 RAL 7035 Grey
PRCE405021A 400 500 210 1 1 13 IP66 X15 Orange
GN604020 400 600 200 1 2 13.7 IP66 RAL 7035 Grey
GN604020A 400 600 200 1 2 13.7 IP66 RAL 2008 Orange
GN604025 400 600 250 1 2 14.3 IP66 RAL 7035 Grey
GN604030 400 600 300 1 2 15.4 IP66 RAL 7035 Grey
PRCE408030 400 800 300 1 2 25.5 IP66 RAL 7035 Grey

WIDTH = 500mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

GN505020 500 500 200 1 2 12.5 IP66 RAL 7035 Grey
PRCE505021 500 500 210 1 1 16.8 IP66 RAL 7035 Grey
PRCE505021A 500 500 210 1 1 16.8 IP66 X15 Orange
PRCE505030 500 500 300 1 1 19.6 IP66 RAL 7035 Grey
GN605020 500 600 200 1 2 16 IP66 RAL 7035 Grey
GN705020 500 700 200 1 2 21.5 IP66 RAL 7035 Grey
GN705020A 500 700 200 1 2 21.5 IP66 RAL 2008 Orange
GN705025 500 700 250 1 2 22.4 IP66 RAL 7035 Grey
PRCE507025 500 700 250 1 2 31.2 IP66 RAL 7035 Grey
PRCE507025A 500 700 250 1 2 31.2 IP66 X15 Orange

WIDTH = 600mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

PRCE603821 600 380 210 1 1 15.4 IP66 RAL 7035 Grey
PRCE603835 600 380 350 1 1 20 IP66 RAL 7035 Grey
GN406020 600 400 200 1 1 12.9 IP66 RAL 7035 Grey
GN406020A 600 400 200 1 1 12.9 IP66 RAL 2008 Orange
GN406030 600 400 300 1 1 15.4 IP66 RAL 7035 Grey
GN406030A 600 400 300 1 1 15.4 IP66 RAL 2008 Orange
GN606020 600 600 200 1 2 21.4 IP66 RAL 7035 Grey
GN606020A 600 600 200 1 2 21.4 IP66 RAL 2008 Orange
PRCE606021 600 600 210 1 2 22.8 IP66 RAL 7035 Grey
PRCE606021A 600 600 210 1 2 22.8 IP66 X15 Orange
PRCE606025 600 600 250 1 2 24.8 IP66 RAL 7035 Grey
GN606030 600 600 300 1 2 25.2 IP66 RAL 7035 Grey
GN606030A 600 600 300 1 2 25.2 IP66 RAL 2008 Orange
PRCE606035 600 600 350 1 2 28.4 IP66 RAL 7035 Grey
GN606040 600 600 400 1 2 30.1 IP66 RAL 7035 Grey
GN706020 600 700 200 1 2 23.5 IP66 RAL 7035 Grey
PRCE607621 600 760 210 1 2 32.1 IP66 RAL 7035 Grey
PRCE607621A 600 760 210 1 2 32.1 IP66 X15 Orange
PRCE607635 600 760 350 1 2 36 IP66 RAL 7035 Grey
GN806020 600 800 200 1 2 27.9 IP66 RAL 7035 Grey
GN806020A 600 800 200 1 2 27.9 IP66 RAL 2008 Orange
GN806025 600 800 250 1 2 30.2 IP66 RAL 7035 Grey
PRCE608025 600 800 250 1 2 33.6 IP66 RAL 7035 Grey
PRCE608025A 600 800 250 1 2 33.6 IP66 X15 Orange
GN806030 600 800 300 1 2 32.8 IP66 RAL 7035 Grey
GN806030A 600 800 300 1 2 32.8 IP66 RAL 2008 Orange
GN806040 600 800 400 1 2 34 IP66 RAL 7035 Grey
GN1006020 600 1000 200 1 1(3P) 42.5 IP66 RAL 7035 Grey
GN1006020A 600 1000 200 1 1(3P) 42.5 IP66 RAL 2008 Orange
PSCM608040 600 800 400 1 1(3P) 39 IP55* RAL 7035 Grey
PRCE6010025 600 1000 250 1 2 50.5 IP66 RAL 7035 Grey
PRCE6010025A 600 1000 250 1 2 50.5 IP66 X15 Orange
GN1006030 600 1000 300 1 1(3P) 44.8 IP66 RAL 7035 Grey
GN1006030A 600 1000 300 1 1(3P) 44.8 IP66 RAL 2008 Orange
PSCM601040 600 1000 400 1 1(3P) 49 IP55* RAL 7035 Grey
GN1206020 600 1200 200 1 1(3P) 46.6 IP66 RAL 7035 Grey
GN1206020A 600 1200 200 1 1(3P) 46.6 IP66 RAL 2008 Orange
GN1206030 600 1200 300 1 1(3P) 48.6 IP66 RAL 7035 Grey
GN1206030A 600 1200 300 1 1(3P) 48.6 IP66 RAL 2008 Orange
PRCE6012030 600 1200 300 1 1((3P) 55 IP66 RAL 7035 Grey
PSCM601230 600 1200 300 1 1(3P) 52 IP55* RAL 7035 Grey
GN1206040 600 1200 400 1 1(3P) 54 IP66 RAL 7035 Grey

WIDTH = 760mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

PRCE767621 760 760 210 1 2 40 IP66 RAL 7035 Grey
PRCE767630 760 760 300 1 2 44.5 IP66 RAL 7035 Grey
PRCE767630A 760 760 300 1 2 44.5 IP66 X15 Orange

WIDTH = 800mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

PRCE806030 800 600 300 1 2 33.9 IP66 RAL 7035 Grey
GN808020 800 800 200 1 2 37.2 IP66 RAL 7035 Grey
GN808030 800 800 300 1 2 39.7 IP66 RAL 7035 Grey
GN808040 800 800 400 1 2 43.1 IP66 RAL 7035 Grey
GN1008020 800 1000 200 1 1(3P) 47 IP66 RAL 7035 Grey
GN1008020A 800 1000 200 1 1(3P) 47 IP66 RAL 2008 Orange
PRCE8010021A 800 1000 210 1 2 55 IP66 X15 Orange
GN1008025 800 1000 250 1 1(3P) 49 IP66 RAL 7035 Grey
GN1008030 800 1000 300 1 1(3P) 51.4 IP66 RAL 7035 Grey
GN1008030A 800 1000 300 1 1(3P) 51.4 IP66 RAL 2008 Orange
PRCE8010030 800 1000 300 1 2 57 IP66 RAL 7035 Grey
PRCE8010030A 800 1000 300 1 2 57 IP66 X15 Orange
PSCM801030 800 1000 300 1 1(3P) 57 IP55* RAL 7035 Grey
PSCM801040 800 1000 400 1 1(3P) 61 IP55* RAL 7035 Grey
GN1208025 800 1200 250 1 1(3P) 57 IP66 RAL 7035 Grey
GN1208025A 800 1200 250 1 1(3P) 57 IP66 RAL 2008 Orange
GN1208030 800 1200 300 1 1(3P) 58.6 IP66 RAL 7035 Grey
GN1208030A 800 1200 300 1 1(3P) 58.6 IP66 RAL 2008 Orange
PRCE8012030 800 1200 300 1 1(3P) 70 IP66 RAL 7035 Grey
PRCE8012030A 800 1200 300 1 1(3P) 70 IP66 X15 Orange
PSCM801230 800 1200 300 1 1(3P) 65 IP55* RAL 7035 Grey
PSCM801240 800 1200 400 1 1(3P) 71 IP55* RAL 7035 Grey

WIDTH = 1000mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

PRCE1007621 1000 760 210 2 2 52 IP55 RAL 7035 Grey
PRCE1007630 1000 760 300 2 2 56 IP55 RAL 7035 Grey
GN8010030/PD 1000 800 300 2 1(3P) 48.1 IP55 RAL 7035 Grey
GN10010030 1000 1000 300 1 1(3P) 61.4 IP66 RAL 7035 Grey
GN10010030/PD 1000 1000 300 2 1(3P) 59.9 IP55 RAL 7035 Grey
PRCE10010030 1000 1000 300 2 2 71 IP55 RAL 7035 Grey
PSCM101030 1000 1000 300 2 1(3P) 70 IP55* RAL 7035 Grey
GN10010040 1000 1000 400 1 1(3P) 63.2 IP66 RAL 7035 Grey
GN12010030 1000 1200 300 1 1(3P) 76 IP66 RAL 7035 Grey
PRCE10012030 1000 1200 300 2 1(3P) 85 IP55 RAL 7035 Grey
PSCM101230 1000 1200 300 2 1(3P) 82 IP55* RAL 7035 Grey
PSCM101240 1000 1200 400 2 1(3P) 86 IP55* RAL 7035 Grey
GN12014040 1000 1200 400 1 1(3P) 78.7 IP66 RAL 7035 Grey
GN14010030/PD 1000 1400 300 2 1(3P) 80.6 IP55 RAL 7035 Grey
PRCE10014030 1000 1400 300 2 1(3P) 97 IP55 RAL 7035 Grey
PSCM101430 1000 1400 300 2 1(3P) 95 IP55* RAL 7035 Grey
PSCM101440 1000 1400 400 2 1(3P) 100 IP55* RAL 7035 Grey

WIDTH = 1200 / 1400 mm +

Model # Dimensions (mm) Doors Locks Weight IP Colour
Width Height Depth (Kg) Rating

GN8012030/PD 1200 800 300 2 1(3P) 58 IP55 RAL 7035 Grey
GN10012030/PD 1200 1000 300 2 1(3P) 78 IP55 RAL 7035 Grey
GN12012030/PD 1200 1200 300 2 1(3P) 91 IP55 RAL 7035 Grey
GN14012040/PD 1200 1400 400 2 1(3P) 94 IP55 RAL 7035 Grey
PSCM141440 1400 1400 400 2 1(3P) 102 IP55* RAL 7035 Grey









Enclosure Solutions from Peekn Services
Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233
Mobile Service: 0448 085 061,  About Us :: Contact Us






Home

About

Contact

Feedback

Wall Mounted Enclosures >

Mild Steel Enclosures

WM Encl. Sizes.PDF

All Encl Sizes.PDF

PSEB Series

GN Series

PRCE Series

PSCM Series

See Also >

Fibreglass Enclosures

Stainless Enclosures

Other Housing Types >

Terminal Boxes

Terminal Boxes





















+You are here+

PRCE Series

PRCM Series

PRCM Series

PRCM Series



PSPK Series

GEAP Series

PSGA Series

ELA Series

PSKLM Series

PSEB Series

CSPBS Series

CSTB Series

PSKLS Series

CSTSL Series











PSKLM Series



> GN Kit Series

> PRCE IP66 Series

> PRCE IP55 Series

> PRCM IP55 Series









Terminal Boxes

Enclosure Materials

  • PVC / ABS

  • Fibreglass

  • Mild Steel

  • Stainless Steel

Sorted by Size

  • W x H x D

  • H x W x D



Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233

Mobile Service: 0448 085 061,  About Us :: Contact Us
