| 72 Models | |||||||||
|
The GN Series provide a range of enclosure solutions which can be used for
general applications with the added advantage that the surface coating provides
exception protection for outdoor applications where UV issues are of concern. The wide range of sizes and extensive accessory portfolio and trade competetive pricing equate to an enclosure solution that is sure to meet, if not exceed, your project expectations. The GN Series of Enclosure Solutions provides for 72 models, 65 of which are IP66 Single door sizes with either Single, Dual or 3 Point locking & a further 7 models which have double doors with 3 point locking and are rated IP55. |
|||||||||
| GN Series Features @ A Glance | |||
 |
|||
 |
1.5mm Body and Door fully welded with folded front profile. |
 |
Double bit lock insert as standard, can be replaced (see accessories). |
 |
Wall mounting holes provision for in the rear body section |
 |
Enclosure supplied with gland plate (s). |
 |
Enclosure supplied with gland plate (s). |
 |
2mm Internal mounting plate / gear tray. |
 |
RAL 7035 UV Hardened Light Grey as standard, select models available in RAL 2008 Orange. | ||
 |
Fully foamed in PU Gasket that provides IP66 Protection. | ||
 |
Single point locking 400H & below, 2 point locking 500 ~ 800, 3 Point locking for 1000H + & double door enclosures. |
 |
Cast 3mm double bit lock insert and locking cam. M6 earthing stud welded to body side section. |
 |
Sealed hinge / accessory fixing points either side for swapping the door hingeing. |
|
|
| GN Specifications @ A Glance |
|
The supply of this enclosure as standard includes, enclosure with hinged door,
1100 degree reversible hinges, a cam lock ((s) 500mm & above) with
5mm double bit inserts,
1000H enclosures are supplied with a single, 3 point locking mechanism, an internal mounting plate and an accessory pack. The enclosure body and door are manufactured from sheet steel (1.2mm up to 595W 595H, 1.6mm others), the surface finish for the enclosure is texture patterned UV tolerant polyester powder coated RAL 7035, some models are Epoxy powder coated RAL 2008 Orange. The mounting plate is galvanised, 800mm + have folded edges for increased rigidity. The GN Series body, door and components combine to provide a mechanical protection rating of IK10 and environmental ratings of NEMA 1, 12, 4 & IP66 for single door cabinets (to IEC 60 529), NEMA 1, 12 & IP55 for double door enclosures. Approval for this standard range of enclosures include UL, CE, Bureau Veritas & GOST-R. |
| GN Dimensions @ A Glance |
 |
|||||||||
| WIDTH = 200 + mm x Height x Depth | |||||||||
| Navigation: > | |||||||||
| Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN202015 | 200 | 200 | 150 | 1 | 1 | 2.5 | IP66 | RAL 7035 Grey | |
| GN302015 | 200 | 300 | 150 | 1 | 1 | 3.9 | IP66 | RAL 7035 Grey | |
| GN302015A | 200 | 300 | 150 | 1 | 1 | 3.9 | IP66 | RAL 2008 Orange | |
| GN302515 | 250 | 300 | 150 | 1 | 1 | 4.6 | IP66 | RAL 7035 Grey | |
| GN303015 | 300 | 300 | 150 | 1 | 1 | 5.4 | IP66 | RAL 7035 Grey | |
| GN303020 | 300 | 300 | 200 | 1 | 1 | 6.1 | IP66 | RAL 7035 Grey | |
| GN403015 | 300 | 400 | 150 | 1 | 1 | 6.8 | IP66 | RAL 7035 Grey | |
| GN403020 | 300 | 400 | 200 | 1 | 1 | 7.4 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 400 + mm x Height x Depth | |||||||||
| Navigation: >> | |||||||||
| Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN304015 | 400 | 300 | 150 | 1 | 1 | 6.5 | IP66 | RAL 7035 Grey | |
| GN304020 | 400 | 300 | 200 | 1 | 1 | 7.4 | IP66 | RAL 7035 Grey | |
| GN404015 | 400 | 400 | 150 | 1 | 1 | 8.2 | IP66 | RAL 7035 Grey | |
| GN404020 | 400 | 400 | 200 | 1 | 1 | 9.6 | IP66 | RAL 7035 Grey | |
| GN404020A | 400 | 400 | 200 | 1 | 1 | 9.6 | IP66 | RAL 2008 Orange | |
| GN504015 | 400 | 500 | 150 | 1 | 2 | 10.8 | IP66 | RAL 7035 Grey | |
| GN504020 | 400 | 500 | 200 | 1 | 2 | 11.4 | IP66 | RAL 7035 Grey | |
| GN604020 | 400 | 600 | 200 | 1 | 2 | 13.7 | IP66 | RAL 7035 Grey | |
| GN604020A | 400 | 600 | 200 | 1 | 2 | 13.7 | IP66 | RAL 2008 Orange | |
| GN604025 | 400 | 600 | 250 | 1 | 2 | 14.3 | IP66 | RAL 7035 Grey | |
| GN604030 | 400 | 600 | 300 | 1 | 2 | 15.4 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 500 + mm x Height x Depth | |||||||||
| Navigation: >> | |||||||||
| Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN505020 | 500 | 500 | 200 | 1 | 2 | 12.5 | IP66 | RAL 7035 Grey | |
| GN605020 | 500 | 600 | 200 | 1 | 2 | 16.0 | IP66 | RAL 7035 Grey | |
| GN705020 | 500 | 700 | 200 | 1 | 2 | 21.5 | IP66 | RAL 7035 Grey | |
| GN705020A | 500 | 700 | 200 | 1 | 2 | 21.5 | IP66 | RAL 2008 Orange | |
| GN705025 | 500 | 700 | 250 | 1 | 2 | 22.4 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 600 + mm x Height x Depth | |||||||||
| Navigation: >> | |||||||||
| Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN406020 | 600 | 400 | 200 | 1 | 1 | 12.9 | IP66 | RAL 7035 Grey | |
| GN406020A | 600 | 400 | 200 | 1 | 1 | 12.9 | IP66 | RAL 2008 Orange | |
| GN406030 | 600 | 400 | 300 | 1 | 1 | 15.4 | IP66 | RAL 7035 Grey | |
| GN406030A | 600 | 400 | 300 | 1 | 1 | 15.4 | IP66 | RAL 2008 Orange | |
| GN606020 | 600 | 600 | 200 | 1 | 2 | 21.4 | IP66 | RAL 7035 Grey | |
| GN606020A | 600 | 600 | 200 | 1 | 2 | 21.4 | IP66 | RAL 2008 Orange | |
| GN606030 | 600 | 600 | 300 | 1 | 2 | 25.2 | IP66 | RAL 7035 Grey | |
| GN606030A | 600 | 600 | 300 | 1 | 2 | 25.2 | IP66 | RAL 2008 Orange | |
| GN606040 | 600 | 600 | 400 | 1 | 2 | 30.1 | IP66 | RAL 7035 Grey | |
| GN706020 | 600 | 700 | 200 | 1 | 2 | 23.5 | IP66 | RAL 7035 Grey | |
| GN806020 | 600 | 800 | 200 | 1 | 2 | 27.9 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 600 + (cont.) mm x Height x Depth | |||||||||
| Navigation: >> | |||||||||
| Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN806020A | 600 | 800 | 200 | 1 | 2 | 27.9 | IP66 | RAL 2008 Orange | |
| GN806025 | 600 | 800 | 250 | 1 | 2 | 30.2 | IP66 | RAL 7035 Grey | |
| GN806030 | 600 | 800 | 300 | 1 | 2 | 32.8 | IP66 | RAL 7035 Grey | |
| GN806030A | 600 | 800 | 300 | 1 | 2 | 32.8 | IP66 | RAL 2008 Orange | |
| GN806040 | 600 | 800 | 400 | 1 | 2 | 34.0 | IP66 | RAL 7035 Grey | |
| GN1006020 | 600 | 1000 | 200 | 1 | 1(3P) | 42.5 | IP66 | RAL 7035 Grey | |
| GN1006020A | 600 | 1000 | 200 | 1 | 1(3P) | 42.5 | IP66 | RAL 2008 Orange | |
| GN1006030 | 600 | 1000 | 300 | 1 | 1(3P) | 44.8 | IP66 | RAL 7035 Grey | |
| GN1006030A | 600 | 1000 | 300 | 1 | 1(3P) | 44.8 | IP66 | RAL 2008 Orange | |
| GN1206020 | 600 | 1200 | 200 | 1 | 1(3P) | 46.6 | IP66 | RAL 7035 Grey | |
| GN1206020A | 600 | 1200 | 200 | 1 | 1(3P) | 46.6 | IP66 | RAL 2008 Orange | |
| GN1206030 | 600 | 1200 | 300 | 1 | 1(3P) | 48.6 | IP66 | RAL 7035 Grey | |
| GN1206030A | 600 | 1200 | 300 | 1 | 1(3P) | 48.6 | IP66 | RAL 2008 Orange | |
| GN1206040 | 600 | 1200 | 400 | 1 | 1(3P) | 54.0 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 800 + mm x Height x Depth | |||||||||
| Navigation: >> | |||||||||
| Width (mm) =Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN808020 | 800 | 800 | 200 | 1 | 2 | 37.2 | IP66 | RAL 7035 Grey | |
| GN808030 | 800 | 800 | 300 | 1 | 2 | 39.7 | IP66 | RAL 7035 Grey | |
| GN808040 | 800 | 800 | 400 | 1 | 2 | 43.1 | IP66 | RAL 7035 Grey | |
| GN1008020 | 800 | 1000 | 200 | 1 | 1(3P) | 47.0 | IP66 | RAL 7035 Grey | |
| GN1008020A | 800 | 1000 | 200 | 1 | 1(3P) | 47.0 | IP66 | RAL 2008 Orange | |
| GN1008025 | 800 | 1000 | 250 | 1 | 1(3P) | 49.0 | IP66 | RAL 7035 Grey | |
| GN1008030 | 800 | 1000 | 300 | 1 | 1(3P) | 51.4 | IP66 | RAL 7035 Grey | |
| GN1008030A | 800 | 1000 | 300 | 1 | 1(3P) | 51.4 | IP66 | RAL 2008 Orange | |
| GN1208025 | 800 | 1200 | 250 | 1 | 1(3P) | 57.0 | IP66 | RAL 7035 Grey | |
| GN1208025A | 800 | 1200 | 250 | 1 | 1(3P) | 57.0 | IP66 | RAL 2008 Orange | |
| GN1208030 | 800 | 1200 | 300 | 1 | 1(3P) | 58.6 | IP66 | RAL 7035 Grey | |
| GN1208030A | 800 | 1200 | 300 | 1 | 1(3P) | 58.6 | IP66 | RAL 2008 Orange | |
|
|
|||||||||
| WIDTH = 1000 + mm x Height x Depth | |||||||||
| Navigation: >> | |||||||||
| Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN10010030 | 1000 | 1000 | 300 | 1 | 1(3P) | 61.4 | IP66 | RAL 7035 Grey | |
| GN10010040 | 1000 | 1000 | 400 | 1 | 1(3P) | 63.2 | IP66 | RAL 7035 Grey | |
| GN12010030 | 1000 | 1200 | 300 | 1 | 1(3P) | 76.0 | IP66 | RAL 7035 Grey | |
| GN12014040 | 1000 | 1200 | 400 | 1 | 1(3P) | 78.7 | IP66 | RAL 7035 Grey | |
|
|
|||||||||
| WIDTH = 1000 + mm x Height x Depth | |||||||||
| Need climate control ? | |||||||||
| Fans / Filters / Heat Exchangers / Air conditioners ? | |||||||||
| Anti-Condensation > Ask us about solutions | |||||||||
| Navigation: >> | |||||||||
| Width (mm) =Width (mm) = 200+, 400+, 500+, 600+, 800+, 1000+, Double Doors | |||||||||
| Model # | Dimension (mm) | Doors | Locks | Weight | IP | Colour | |||
| Width | Height | Depth | (Kg) | Rating | |||||
| GN8010030/PD | 1000 | 800 | 300 | 2 | 1(3P) | 48.1 | IP55 | RAL 7035 Grey | |
| GN8012030/PD | 1200 | 800 | 300 | 2 | 1(3P) | 58.0 | IP55 | RAL 7035 Grey | |
| GN10010030/PD | 1000 | 1000 | 300 | 2 | 1(3P) | 59.9 | IP55 | RAL 7035 Grey | |
| GN10012030/PD | 1200 | 1000 | 300 | 2 | 1(3P) | 78.0 | IP55 | RAL 7035 Grey | |
| GN12012030/PD | 1200 | 1200 | 300 | 2 | 1(3P) | 91.0 | IP55 | RAL 7035 Grey | |
| GN14010030/PD | 1000 | 1400 | 300 | 2 | 1(3P) | 80.6 | IP55 | RAL 7035 Grey | |
| GN14012040/PD | 1200 | 1400 | 400 | 2 | 1(3P) | 94.0 | IP55 | RAL 7035 Grey | |
| GN Accessories @ A Glance | |||
| The GN Series of Enclosures / Cabinets/ Switchboards are supported by a wide range of accessories, including the following: | |||

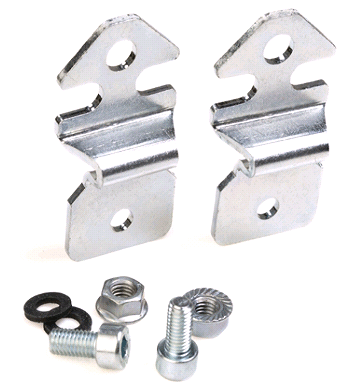

| Wall Mounting Brackets | Keyed Cylinder | Keyed Wing Handle | T Handles (5 types) |
 |
 |
 |
 |

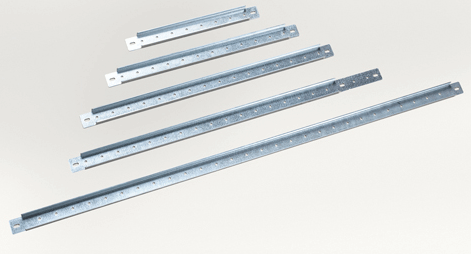

| Rain Canopy | Pole Mounting Kit | Plinth | Door Cross Rails |
| all models | 300 ~ 800mm wide | min size 600W x 250D | |
 |
 |
 |
 |
| Inner Door | DIN Chassis | ||
| not available for all models | not available for all models | SEE ALSO GN KIT Series | |
| for Common Configurations | |||
 |
 |
||
| + | MORE (just Ask) | ||
| Components @ A Glance | |||
|
The GN Series of enclosures are complimented with a wide
range of components that are available for you to include in your project. Please see below a very brief overview of typical electrical components used within our enclosure ranges. |
|||
| Please Note: This list is not extensive, please contact us with your enquiries for other items that we may also be able to supply. | |||
 |
DIN Rail |
 |
| Terminal Blocks | ||
| Ducting | ||
| MCB's | ||
| RCD's | ||
| RCBO's | ||
| Main Switches | ||
| Isolators | ||
| Relays | ||
| Contactors | ||
| Surge Protection | ||
| Emergency Lighting | ||
| kWh Meters | ||
| Analogue Meters | ||
| Push Buttons, Selector Switches, Indicator Lights, Emergency Stop stations, Labels | ||
| Earth Bars, Neutral Links, IP66 Switchgear | ||
| Resources @ A Glance |
|
The GN Series of enclosures are complimented with a wide
range of components that are available for you to include in your project. Please see below a very brief overview of typical electrical components used within our enclosure ranges. |
| How can we help you? |
| Your visit has been appreciated and we look forward to your comments / enquiries. |
| Please leave us a message below or call us on 0448 085 061 to discuss your application. |
 |
| Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233 |
| Mobile Service: 0448 085 061, About Us :: Contact Us |
| Extended descriptions : |
| Also Similar to:- |
| Enclosure Solutions, PSEB151580 150W 150H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB151580 150W 150H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1551500, 150W 150H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB15158, 150W 150H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB151512 150W 150H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB151512 150W 150H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1553500, 150W 150H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB151512, 150W 150H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB153080 150W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB153080 150W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1545500, 150W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB15308, 150W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB153012 150W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB153012 150W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1548500, 150W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB153012, 150W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB202080 200W 200H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB202080 200W 200H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1546500, 200W 200H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB20208, 200W 200H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB202012 200W 200H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB202012 200W 200H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1549500, 200W 200H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB202012, 200W 200H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions GN202015 200W 200H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN202015 200W 200H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Argenta GN202015 200W 200H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB202015 200W 200H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST2215 200W 200H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| TiBox ST22515 200W 250H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions, PSEB203080 200W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB203080 200W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1552500, 200W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB20308, 200W 300H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB203012 200W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB203012 200W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1554500, 200W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB203012, 200W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions 200W x 300H x 120D Steel Electrical Cabinet Enclosure Switchboard box PRCE203012 |
| Peekn Services 200W x 300H x 120D Steel Electrical Cabinet Enclosure Switchboard box PRCE203012 |
| Rittal AE 1032.500, 200W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet box, RAL 7035 light grey |
| Enclosure Solutions GN302015 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Enclosure Solutions GN302015A 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL2008 Orange |
| Peekn Services GN302015 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN302015A 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL2008 Orange |
| Argenta GN302015 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB302015 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB302015 200W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST22315 200W 300H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions 200W x 300H x 155D Steel Electrical Cabinet Enclosure Switchboard box PRCE203015 |
| Peekn Services 200W x 300H x 155D Steel Electrical Cabinet Enclosure Switchboard box PRCE203015 |
| Rittal AE 1035.500, 200W 300H 155D mm, IP66 Mild steel electrical enclosure cabinet box, RAL 7035 light grey |
| Enclosure Solutions, PSEB204080 200W 400H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB204080 200W 400H 80D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1547500, 200W 400H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB20408, 200W 400H 80D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB204012 200W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB204012 200W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1550500, 200W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB204012, 200W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB205012 200W 500H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB205012 200W 500H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1557500, 200W 500H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB205012, 200W 500H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| TiBox ST252515 250W 250H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions GN302515 250W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN302515 250W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Argenta GN302515 250W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB302515 250W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST225315 250W 300H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| TiBox ST3315 250W 300H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions, PSEB303012 300W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB303012 300W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1555500, 300W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB303012, 300W 300H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions GN303015 300W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN303015 300W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Argenta GN303015 300W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB303015 300W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Enclosure Solutions 300W x 300H x 155D Steel Electrical Cabinet Enclosure Switchboard box PRCE303015 |
| Peekn Services 300W x 300H x 155D Steel Electrical Cabinet Enclosure Switchboard box PRCE303015 |
| Enclosure Solutions 300W x 300H x 210D Steel Electrical Cabinet Enclosure Switchboard box PRCE303021 |
| Peekn Services 300W x 300H x 210D Steel Electrical Cabinet Enclosure Switchboard box PRCE303021 |
| Enclosure Solutions, PSEB304012 300W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB304012 300W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1556500, 300W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB304012, 300W 400H 120D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions GN403015 300W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN403015 300W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Argenta GN403015 300W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB403015 300W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST3415 300W 400H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions, PSEB304015 300W 400H 155D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB304015 300W 400H 155D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1577500, 300W 400H 155D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB3040155, 300W 400H 155D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions 300W x 400H x 210D Steel Electrical Cabinet Enclosure Switchboard box PRCE304021 |
| Peekn Services 300W x 400H x 210D Steel Electrical Cabinet Enclosure Switchboard box PRCE304021 |
| TiBox ST3515 300W 500H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions, PSEB306015 300W 600H 155D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB306015 300W 600H 155D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1578500, 300W 600H 155D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB3060155, 300W 600H 155D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions, PSEB308015 300W 800H 155D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Peekn Services, PSEB308015 300W 800H 155D mm, IP66 Mild steel electrical enclosure cabinet – terminal box, RAL 7035 light grey |
| Rittal EB 1579500, 300W 800H 155D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Toten Aus TB3080155, 300W 800H 155D mm, IP66 Mild steel electrical enclosure cabinet / terminal box, |
| Enclosure Solutions 380W x 300H x 155D Steel Electrical Cabinet Enclosure Switchboard box PRCE383015 |
| Peekn Services 380W x 300H x 155D Steel Electrical Cabinet Enclosure Switchboard box PRCE383015 |
| Rittal AE 1030.500, 380W 300H 155D mm, IP66 Mild steel electrical enclosure cabinet box, RAL 7035 light grey |
| Enclosure Solutions GN304015 400W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN304015 400W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Argenta GN304015 400W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB304015 400W 300H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST4315 400W 300H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Enclosure Solutions GN404015 400W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Peekn Services GN404015 400W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| Argenta GN404015 400W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| IPD MSB404015 400W 400H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST4415 400W 400H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| IPD MSB504015 400W 500H 150D, IP66 Mild Steel Electrical enclosure cabinet metal box, RAL7035 Light Grey |
| TiBox ST4515 400W 500H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| TiBox ST4615 400W 600H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| TiBox ST5515 500W 500H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| TiBox ST5615 500W 600H 150D mm, IP66 Mild steel electrical enclosure cabinet metal box, RAL 7035 light grey |
| Tibox AE202015 200W x 200H x 150D mm, IP66 Mild steel electrical enclosure cabinet box, RAL 7035 light grey |
| Tibox AE203015 200W x 300H x 150D mm, IP66 Mild steel electrical enclosure cabinet box, RAL 7035 light grey |
---------------
GN IP66 Series
GN IP55 Series
> GN Kit Series
> PRCE IP66 Series
> PRCE IP55 Series
> PRCM IP55 Series
---------------
Sorted by size
-
W x H x D
-
H x W x D
-
D x W x H
-
Stainless Steel
Sorted by Size
-
W x H x D
-
H x W x D
Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233
Mobile Service: 0448 085 061, About Us :: Contact Us
