On request IP66 / NEMA 4 / EMC - RFI Sheilded versions.

A range of free standing electrical enclosure, cabinet & switchboard solutions from Peekn Services.... Greetings & thank you for your interest in our Freestanding Enclosure product Ranges. Our portfolio includes 9 Enclosure programs which provide in excess of 105 models / variants ( and that excludes any custom built 316 Stainless Enclosures).

Product Overview @ A Glance

The FSMS series of free standing enclosure solution from Peekn Services are constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories.     They include a a front door (or doors) with a centrally mounted 3 point locking system, removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard.     Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are common accessories.      A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request.     The high IP Rating lends itself perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications (see Climate Control).

Free Standing Enclosures

Mild Steel Modular - FSMS Series

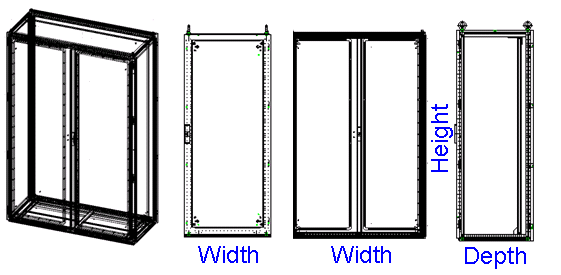

Dimensions @ A Glance
Part numbers for the enclosure size & sidepanels are listed below. For convenience, these enclosure models have been sorted two ways, they being either DIMENSIONS I > Width x Height x Depth or
DIMENSIONS II > Height x Width x Depth
Personally, I prefer W x H x D which I can easily relate to XYZ if I have to draw them...
Dimensions I @ A Glance
Sorted > Width x Height x Depth (grouped by depth)
Please click here for sort order Height x Width x Depth.
Width x Height x Depth ~ Depth = 400mm
NAVIGATION WHD: Depth = 400mm, 500mm, 600mm, 800mm
Model #	Dimensions mm			Side
	Width	Height	Depth	Panels	Doors	Weight	IP	Colour
FSMS601840	600	1800	400	FSSP1840	1	91.3	55	RAL 7035
FSMS602040	600	2000	400	FSSP2040	1	99.0	55	RAL 7035
FSMS801840	800	1800	400	FSSP1840	1	113.5	55	RAL 7035
FSMS802040	800	2000	400	FSSP2040	1	124.0	55	RAL 7035
FSMS101840-2	1000	1800	400	FSSP1840	2	140.0	55	RAL 7035
FSMS101840	1000	1800	400	FSSP1840	1	136.4	55	RAL 7035
FSMS102040	1000	2000	400	FSSP2040	2	152.8	55	RAL 7035
FSMS121840	1200	1800	400	FSSP1840	2	170.6	55	RAL 7035
FSMS122040	1200	2000	400	FSSP2040	2	184.5	55	RAL 7035
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry
Width x Height x Depth ~ Depth = 500mm
NAVIGATION WHD: Depth = 400mm, 500mm, 600mm, 800mm
Model #	Dimensions mm			Side
	Width	Height	Depth	Panels	Doors	Weight	IP	Colour
FSMS401850*	400	1800	500	FSSP1850	1		55	RAL 7035
FSMS402050*	400	2000	500	FSSP2050	1		55	RAL 7035
FSMS601250	600	1200	500	FSSP1250	1	86.0	55	RAL 7035
FSMS601450	600	1400	500	FSSP1450	1	107.5	55	RAL 7035
FSMS601650	600	1600	500	FSSP1650	1	100.0	55	RAL 7035
FSMS601850	600	1800	500	FSSP1850	1	93.8	55	RAL 7035
FSMS602050	600	2000	500	FSSP2050	1	101.3	55	RAL 7035
FSMS801250	800	1200	500	FSSP1250	1		55	RAL 7035
FSMS801450	800	1400	500	FSSP1450	1		55	RAL 7035
FSMS801650	800	1600	500	FSSP1650	1	103.0	55	RAL 7035
FSMS801850-2	800	1800	500	FSSP1850	2	122.5	55	RAL 7035
FSMS801850	800	1800	500	FSSP1850	1	115.8	55	RAL 7035
FSMS802050	800	2000	500	FSSP2050	1	126.3	55	RAL 7035
FSMS102050	1000	2000	500	FSSP2050	2	157.1	55	RAL 7035
FSMS121250	1200	1200	500	FSSP1250	2		55	RAL 7035
FSMS121450	1200	1400	500	FSSP1450	2	163.5	55	RAL 7035
FSMS121650	1200	1600	500	FSSP1650	2	159.3	55	RAL 7035
FSMS121850	1200	1800	500	FSSP1850	2	173.3	55	RAL 7035
FSMS122050	1200	2000	500	FSSP2050	2	190.6	55	RAL 7035
* No Mounting Plate
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry
Width x Height x Depth ~ Depth = 600mm
NAVIGATION WHD: Depth = 400mm, 500mm, 600mm, 800mm
Model #	Dimensions mm			Side
	Width	Height	Depth	Panels	Doors	Weight	IP	Colour
FSMS401860*	400	1800	600	FSSP1860	1		55	RAL 7035
FSMS402060*	400	2000	600	FSSP2060	1		55	RAL 7035
FSMS601860	600	1800	600	FSSP1860	1	96.8	55	RAL 7035
FSMS602060	600	2000	600	FSSP2060	1	104.0	55	RAL 7035
FSMS602260	600	2200	600	FSSP2260	1	113.1	55	RAL 7035
FSMS801860-2	800	1800	600	FSSP1860	2	125.8	55	RAL 7035
FSMS801860	800	1800	600	FSSP1860	1	120.3	55	RAL 7035
FSMS802060	800	2000	600	FSSP2060	1	130.5	55	RAL 7035
FSMS802260	800	2200	600	FSSP2260	1	139.3	55	RAL 7035
FSMS102060	1000	2000	600	FSSP2060	2	161.2	55	RAL 7035
FSMS121860	1200	1800	600	FSSP1860	2	179.9	55	RAL 7035
FSMS122060	1200	2000	600	FSSP2060	2	194.6	55	RAL 7035
FSMS122260	1200	2200	600	FSSP2260	2	208.0	55	RAL 7035
* No Mounting Plate
Width x Height x Depth ~ Depth = 800mm
NAVIGATION WHD: Depth = 400mm, 500mm, 600mm, 800mm
Model #	Dimensions mm			Side
	Width	Height	Depth	Panels	Doors	Weight	IP	Colour
FSMS602080	600	2000	800	FSSP2080	1	111.3	55	RAL 7035
FSMS802080	800	2000	800	FSSP2080	1	137.0	55	RAL 7035
FSMS122080	1200	2000	800	FSSP2080	2	203.0	55	RAL 7035
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry

Height x Width x Depth ~ Depth = 400mm
NAVIGATION HWD: Depth = 400mm, 500mm, 600mm,800mm
Model #	Dimensions mm			Side
	Height	Width	Depth	Panels	Doors	Weight	IP	Colour
FSMS601840	1800	600	400	FSSP1840	1	91.3	55	RAL 7035
FSMS801840	1800	800	400	FSSP1840	1	113.5	55	RAL 7035
FSMS101840-2	1800	1000	400	FSSP1840	2	140	55	RAL 7035
FSMS101840	1800	1000	400	FSSP1840	1	136.4	55	RAL 7035
FSMS121840	1800	1200	400	FSSP1840	2	170.6	55	RAL 7035
FSMS602040	2000	600	400	FSSP2040	1	99	55	RAL 7035
FSMS802040	2000	800	400	FSSP2040	1	124	55	RAL 7035
FSMS102040	2000	1000	400	FSSP2040	2	152.8	55	RAL 7035
FSMS122040	2000	1200	400	FSSP2040	2	184.5	55	RAL 7035
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry
Height x Width x Depth ~ Depth = 500mm
NAVIGATION HWD: Depth = 400mm, 500mm, 600mm,800mm
Model #	Dimensions mm			Side
	Height	Width	Depth	Panels	Doors	Weight	IP	Colour
FSMS601250	1200	600	500	FSSP1250	1	86	55	RAL 7035
FSMS801250	1200	800	500	FSSP1250	1		55	RAL 7035
FSMS121250	1200	1200	500	FSSP1250	2		55	RAL 7035
FSMS601450	1400	600	500	FSSP1450	1	107.5	55	RAL 7035
FSMS801450	1400	800	500	FSSP1450	1		55	RAL 7035
FSMS121450	1400	1200	500	FSSP1450	2	163.5	55	RAL 7035
FSMS601650	1600	600	500	FSSP1650	1	100	55	RAL 7035
FSMS801650	1600	800	500	FSSP1650	1	103	55	RAL 7035
FSMS121650	1600	1200	500	FSSP1650	2	159.3	55	RAL 7035
FSMS401850*	1800	400	500	FSSP1850	1		55	RAL 7035
FSMS601850	1800	600	500	FSSP1850	1	93.8	55	RAL 7035
FSMS801850-2	1800	800	500	FSSP1850	2	122.5	55	RAL 7035
FSMS801850	1800	800	500	FSSP1850	1	115.8	55	RAL 7035
FSMS121850	1800	1200	500	FSSP1850	2	173.3	55	RAL 7035
FSMS402050*	2000	400	500	FSSP2050	1		55	RAL 7035
FSMS602050	2000	600	500	FSSP2050	1	101.3	55	RAL 7035
FSMS802050	2000	800	500	FSSP2050	1	126.3	55	RAL 7035
FSMS102050	2000	1000	500	FSSP2050	2	157.1	55	RAL 7035
FSMS122050	2000	1200	500	FSSP2050	2	190.6	55	RAL 7035
* NO mounting plate
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry
Height x Width x Depth ~ Depth = 600mm
NAVIGATION HWD: Depth = 400mm, 500mm, 600mm,800mm
Model #	Dimensions mm			Side
	Height	Width	Depth	Panels	Doors	Weight	IP	Colour
FSMS401860*	1800	400	600	FSSP1860	1		55	RAL 7035
FSMS601860	1800	600	600	FSSP1860	1	96.8	55	RAL 7035
FSMS801860-2	1800	800	600	FSSP1860	2	125.8	55	RAL 7035
FSMS801860	1800	800	600	FSSP1860	1	120.3	55	RAL 7035
FSMS121860	1800	1200	600	FSSP1860	2	179.9	55	RAL 7035
FSMS402060*	2000	400	600	FSSP2060	1		55	RAL 7035
FSMS602060	2000	600	600	FSSP2060	1	104	55	RAL 7035
FSMS802060	2000	800	600	FSSP2060	1	130.5	55	RAL 7035
FSMS102060	2000	1000	600	FSSP2060	2	161.2	55	RAL 7035
FSMS122060	2000	1200	600	FSSP2060	2	194.6	55	RAL 7035
FSMS602260	2200	600	600	FSSP2260	1	113.1	55	RAL 7035
FSMS802260	2200	800	600	FSSP2260	1	139.3	55	RAL 7035
FSMS122260	2200	1200	600	FSSP2260	2	208	55	RAL 7035
* NO mounting plate
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry
Height x Width x Depth ~ Depth = 800mm
NAVIGATION HWD: Depth = 400mm, 500mm, 600mm,800mm
Model #	Dimensions mm			Side
	Height	Width	Depth	Panels	Doors	Weight	IP	Colour
FSMS602080	2000	600	800	FSSP2080	1	111.3	55	RAL 7035
FSMS802080	2000	800	800	FSSP2080	1	137	55	RAL 7035
FSMS122080	2000	1200	800	FSSP2080	2	203	55	RAL 7035
NAVIGATION II > Accessories, Climate Control, Components, Resources, Enquiry

Accessories @ A Glance
The FSMS Series of enclosures are complimented with a wide range of components that are available for you to include in your project.     Please see below a very brief overview of typical electrical components used within our enclosure ranges.
Please Note: This list is not extensive, please contact us with your enquiries for other configuration options that we may also be able to supply.

19" - Mounting Angles	Earth Rail - Horizontal	Punched Rails - Height
19" - Swing Frames	Earth Rail - Vertical	Punched Rails - Width
Baying Kits	Earth Rails	Roof Eyebolts
Busbar Systems	Earth Straps	Roof Mounting Screws
C Rail	Earthquake Bracing	Roof Spacers
Cable Chambers	Hinge Options	Shelving - Fixed
Cable Entry Glands	Hinged Mounting Plates	Shelving Telescopic
Cable Entry Systems	Isolator Door Locking	Side panels - Fixed
Cable Management	Joining Kits	Side panels - Hinged
Castors - transport	Levelling Feet	Slide Rails
DIN Rail	Lock Systems	Support Rails
Divider Panels	Mounting Plate -adj bkts	System lights
Door Cross Rails	Mounting Plates - Partial	Top - Panel - Cable Entry
Door Stays	Partial Doors	Top - Panel - Spacers
Door Support Rollers	Partial Mounting Plates	Top Mounting Modules
Door Switches	Plinth - 100mm	Top P anel - Vented
Ducting	Plinth - 200mm	Top Panel - IP4x
Dust guard Trims	Plinth - Transport	Transformer Support Rails
Earth Braids	Punched rails - Depth	Wiring Plan Pockets

Climate Control @ A Glance
The FSMS Series of enclosures have been designed with the requirement for climate control components in mind and this is proven by the extensive range of solutions available.     This series of enclosure solutions can be augmented with the following climate control components:     > Industrial electrical enclosure hygrostats.     > Industrial electrical enclosure thermostats.     > Fan speed controllers.     > Industrial electrical enclosure heaters.        - 10 ~ 800W continuous thermal output.     > Industrial electrical enclosure fan & filter units, enclosure filter units.        - Wall mounted, 20 ~ 900m3/h.        - Roof Mounted, 400 ~ 800m3/h.     > Enclosure electrical enclosure Air / Air Heat Exchangers.        - Wall Mounted, 17 ~ 90 W/K.        - Roof Mounted, 60 W/K.     > Enclosure electrical enclosure Air / Water Heat Exchangers.        - Wall Mounted, 300 ~ 7000 W.        - Roof Mounted, 1875 ~ 4000 W.     > Enclosure Air-conditioners.        - Thermoelectric, 100 W.        - Wall Mounted, 300 ~ 4000 W.        - Roof Mounted, 500 ~ 4000 W.
Please Note: This list is not extensive, please contact us with your enquiries for other items that we may be able to assist with for your project.

Components @ A Glance
The FSMS Series of enclosures are complimented with a wide range of components that are available for you to include in your project.     Please see below a very brief overview of typical electrical components used within our enclosure ranges.
Please Note: This list is not extensive, please contact us with your enquiries for other items that we may be able to assist with for your project.

	DIN Rail
	Terminal Blocks
	Ducting
	MCB's
	RCD's
	RCBO's
	Main Switches
	Isolators
	Relays
	Contactors
	Surge Protection
	Emergency Lighting
	kWh Meters
	Analogue Meters
Push Buttons, Selector Switches, Indicator Lights, Emergency Stop stations, Labels Earth Bars, Neutral Links & IP66 Switchgear as examples.

Resources @ A Glance

Project Planning:

> Cilmate Control, Our Apart from the overview of climate control solutions listed above, we are generally able to assist with your climate control calculations. Please request a "climate calculation requirements" in the below form and we will offer you an obligation free proposal for your consideration.

> CAD Drawings,

We have an extensive library of CAD drawings in various formats for most of these enclosure solutions, let us know what you need and we can possibly help.

How can we help you?

Your visit has been appreciated and we look forward to your comments / enquiries.

Please leave us a message below or call us on 0448 085 061 to discuss your application.

Name (and Company name if applicable) * Required     Email * Required     Suburb & Postcode * Required     Telephone * (10 numbers) Comments   Free Standing Enclosures, your comments below here please   Error: please enable JavaScript and reload this page before using the form.

Peekn Services, ABN: 15 924 167 896, Heathcote, N.S.W. 2233

Mobile Service: 0448 085 061,  About Us :: Contact Us

Width	Height	Depth	Extended Descriptions for the FSMS Range of enclosure solutions from Peekn Services
600	1800	400	The FSMS601840 600W x 1800H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	2000	400	The FSMS602040 600W x 2000H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1800	400	The FSMS801840 800W x 1800H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	2000	400	The FSMS802040 800W x 2000H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1000	1800	400	The FSMS101840 1000W x 1800H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1000	1800	400	The FSMS101840 1000W x 1800H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1000	2000	400	The FSMS102040 1000W x 2000H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	1800	400	The FSMS121840 1200W x 1800H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	2000	400	The FSMS122040 1200W x 2000H x 400D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
400	1800	500	The FSMS401850 400W x 1800H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an  (no mounting plate), adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
400	2000	500	The FSMS402050 400W x 2000H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an (no mounting plate), adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	1200	500	The FSMS601250 600W x 1200H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	1400	500	The FSMS601450 600W x 1400H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	1600	500	The FSMS601650 600W x 1600H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	1800	500	The FSMS601850 600W x 1800H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	2000	500	The FSMS602050 600W x 2000H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1200	500	The FSMS801250 800W x 1200H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1400	500	The FSMS801450 800W x 1400H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1600	500	The FSMS801650 800W x 1600H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	2000	500	The FSMS802050 800W x 2000H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1000	2000	500	The FSMS102050 1000W x 2000H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	1200	500	The FSMS121250 1200W x 1200H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	1400	500	The FSMS121450 1200W x 1400H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	1600	500	The FSMS121650 1200W x 1600H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	1800	500	The FSMS121850 1200W x 1800H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	2000	500	The FSMS122050 1200W x 2000H x 500D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
400	1800	600	The FSMS401860 400W x 1800H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an (no mounting plate), adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
400	2000	600	The FSMS402060 400W x 2000H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an  (no mounting plate), adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	1800	600	The FSMS601860 600W x 1800H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	2000	600	The FSMS602060 600W x 2000H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	2200	600	The FSMS602260 600W x 2200H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1800	600	The FSMS801860 800W x 1800H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	1800	600	The FSMS801860 800W x 1800H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	2000	600	The FSMS802060 800W x 2000H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	2200	600	The FSMS802260 800W x 2200H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1000	2000	600	The FSMS102060 1000W x 2000H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	1800	600	The FSMS121860 1200W x 1800H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	2000	600	The FSMS122060 1200W x 2000H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	2200	600	The FSMS122260 1200W x 2200H x 600D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
600	2000	800	The FSMS602080 600W x 2000H x 800D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
800	2000	800	The FSMS802080 800W x 2000H x 800D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
1200	2000	800	The FSMS122080 1200W x 2000H x 800D Free standing enclosure solution from Peekn Services is constructed from a fully welded multi - fold - profile frame which is pattern punched for exceptional weight handling capacity whilst at the same designed to accept a wide range of internal support rails and other accessories, they include a a front door (or doors), removable top and rear panel along with an internal 3mm Zinc plated mounting plate, adjustable gland plates in the base are also standard. Side panels, 100 / 200mm Plinths or transport bases along with multiple enclosure baying / joining solutions are are common accessories.  A complete cabinet is typically IP55 - Nema 4, 12, 1 Rated with other ratings available on request lends it self perfectly to providing industrial climate control solutions ranging from heating, ventillation & air-conditioned applications.
Comparisons of similar enclosures to the FSMS Range of enclosure solutions from Peekn Services.
400	2000	400	The FSMS402040 400W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200404
600	1800	400	The FSMS601840 600W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180604
600	1800	400	The FSMS601840 600W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS18064R5
600	1800	400	The FSMS601840 600W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8684500
600	2000	400	The FSMS602040 600W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200604
600	2000	400	The FSMS602040 600W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20064R5
600	2000	400	The FSMS602040 600W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8604500
800	1800	400	The FSMS801840 800W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180804
800	1800	400	The FSMS801840 800W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS18084R5
800	1800	400	The FSMS801840 800W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8884500
800	2000	400	The FSMS802040 800W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200804
800	2000	400	The FSMS802040 800W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20084R5
800	2000	400	The FSMS802040 800W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8804500
1000	1800	400	The FSMS101840 1000W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE181004/DD
1000	1800	400	The FSMS101840 1000W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS18104R5
1000	1800	400	The FSMS101840 1000W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8080500
1000	1800	400	The FSMS101840 1000W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8084500
1000	2000	400	The FSMS102040 1000W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201004/DD
1000	2000	400	The FSMS102040 1000W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20104R5
1000	2000	400	The FSMS102040 1000W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8004500
1200	1800	400	The FSMS121840 1200W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE181204/DD
1200	1800	400	The FSMS121840 1200W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD18124R5
1200	1800	400	The FSMS121840 1200W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8284500
1200	2000	400	The FSMS122040 1200W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201204/DD
1200	2000	400	The FSMS122040 1200W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD20124R5
1200	2000	400	The FSMS122040 1200W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8204500
1600	1800	400	The FSMS161840 1600W x 1800H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD18164R5
1600	2000	400	The FSMS162040 1600W x 2000H x 400D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD20164R5
400	1800	500	The FSMS401850 400W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180405
400	1800	500	The FSMS401850 400W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8485510
400	2000	500	The FSMS402050 400W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200405
400	2000	500	The FSMS402050 400W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8405510
600	1200	500	The FSMS601250 600W x 1200H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8615500
600	1400	500	The FSMS601450 600W x 1400H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE140605
600	1400	500	The FSMS601450 600W x 1400H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8645500
600	1600	500	The FSMS601650 600W x 1600H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE160605
600	1600	500	The FSMS601650 600W x 1600H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8665500
600	1800	500	The FSMS601850 600W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180605
600	1800	500	The FSMS601850 600W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS18065R5
600	1800	500	The FSMS601850 600W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8685500
600	2000	500	The FSMS602050 600W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200605
600	2000	500	The FSMS602050 600W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20065R5
600	2000	500	The FSMS602050 600W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8605500
800	1200	500	The FSMS801250 800W x 1200H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8815500
800	1400	500	The FSMS801450 800W x 1400H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE140805
800	1400	500	The FSMS801450 800W x 1400H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8845500
800	1600	500	The FSMS801650 800W x 1600H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE160805
800	1600	500	The FSMS801650 800W x 1600H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8865500
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180805
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180805/DD
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS18085R5
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8880500
800	1800	500	The FSMS801850 800W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8885500
800	2000	500	The FSMS802050 800W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200805
800	2000	500	The FSMS802050 800W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20085R5
800	2000	500	The FSMS802050 800W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8805500
1000	1800	500	The FSMS101850 1000W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS18105R5
1000	2000	500	The FSMS102050 1000W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201005/DD
1000	2000	500	The FSMS102050 1000W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20105R5
1000	2000	500	The FSMS102050 1000W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8005500
1200	1200	500	The FSMS121250 1200W x 1200H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8215500
1200	1400	500	The FSMS121450 1200W x 1400H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE141205/DD
1200	1400	500	The FSMS121450 1200W x 1400H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8245500
1200	1600	500	The FSMS121650 1200W x 1600H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE161205/DD
1200	1600	500	The FSMS121650 1200W x 1600H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8265500
1200	1800	500	The FSMS121850 1200W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE181205/DD
1200	1800	500	The FSMS121850 1200W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE181205/DD
1200	1800	500	The FSMS121850 1200W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD18125R5
1200	1800	500	The FSMS121850 1200W x 1800H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8285500
1200	2000	500	The FSMS122050 1200W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201205/DD
1200	2000	500	The FSMS122050 1200W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD20125R5
1200	2000	500	The FSMS122050 1200W x 2000H x 500D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8205500
400	1800	600	The FSMS401860 400W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180406
400	1800	600	The FSMS401860 400W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8486510
400	2000	600	The FSMS402060 400W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200406
400	2000	600	The FSMS402060 400W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8406510
600	1800	600	The FSMS601860 600W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180606
600	1800	600	The FSMS601860 600W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8686500
600	2000	600	The FSMS602060 600W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8606500
600	2200	600	The FSMS602260 600W x 2200H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE220606
600	2200	600	The FSMS602260 600W x 2200H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8626500
800	1800	600	The FSMS801860 800W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180806
800	1800	600	The FSMS801860 800W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE180806/DD
800	1800	600	The FSMS801860 800W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8881500
800	1800	600	The FSMS801860 800W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8886500
800	2000	600	The FSMS802060 800W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200806
800	2000	600	The FSMS802060 800W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20086R5
800	2000	600	The FSMS802060 800W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8806500
800	2200	600	The FSMS802260 800W x 2200H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE220806
800	2200	600	The FSMS802260 800W x 2200H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8826500
1000	2000	600	The FSMS102060 1000W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201006/DD
1000	2000	600	The FSMS102060 1000W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon Enclosure MCS Series Model No. MCS20106R5
1000	2000	600	The FSMS102060 1000W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8006500
1200	1800	600	The FSMS121860 1200W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE181206/DD
1200	1800	600	The FSMS121860 1200W x 1800H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8286500
1200	2000	600	The FSMS122060 1200W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201206/DD
1200	2000	600	The FSMS122060 1200W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Eldon enclosure MCD Series Model No. MCD20126R5
1200	2000	600	The FSMS122060 1200W x 2000H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8206500
1200	2200	600	The FSMS122260 1200W x 2200H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE221206/DD
1200	2200	600	The FSMS122260 1200W x 2200H x 600D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8226500
600	2000	800	The FSMS602080 600W x 2000H x 800D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200608
600	2000	800	The FSMS602080 600W x 2000H x 800D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8608500
800	2000	800	The FSMS802080 800W x 2000H x 800D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE200808
800	2000	800	The FSMS802080 800W x 2000H x 800D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8806500
1200	2000	800	The FSMS122080 1200W x 2000H x 800D Free standing enclosure solution from Peekn Services is similar in size and application to B & R Enclosures iLNQ Series Model No. LQE201208/DD
1200	2000	800	The FSMS122080 1200W x 2000H x 800D Free standing enclosure solution from Peekn Services is similar in size and application to Rittal TS8 Series Model No. 8208500
